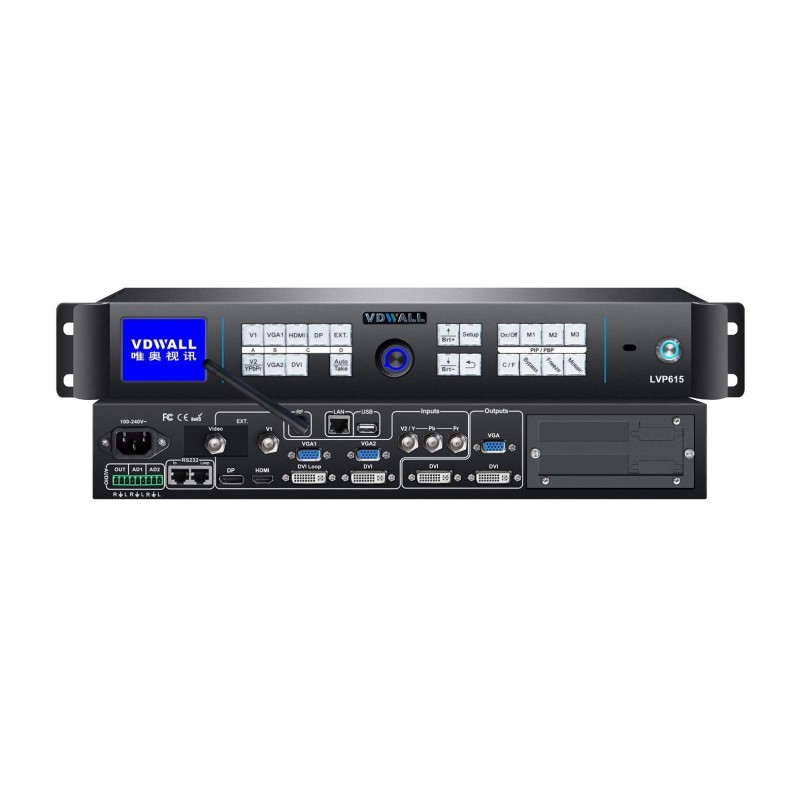

VDWALL LVP615
- Rp.0
- Brands VDWALL
- Product Code: VDWALL LVP615
- Availability: In Stock
• LED HD Video Processor• wireless WI-FI control&remote control• pip/pbp,text overlay• synchronic Multi-unit In Parallel• LVP615 : Extend interface optional 1×CVBS• Features- New generation Faroudja® Real Color® professional LED video processor , 10+ Bit Faroudja® DCDI Cinema Processing Faroudja® TureLife™ videoenhancer.- SeamlessSwitching、FadeinFadeoutSwitching、Blend Switching- Twosigna..
Tags: VDWALL, Visual Display, Video Processor
• LED HD Video Processor
• wireless WI-FI control&remote control
• pip/pbp,text overlay
• synchronic Multi-unit In Parallel
• LVP615 : Extend interface optional 1×CVBS
• Features
-
New generation Faroudja® Real Color® professional LED video processor ,
10+ Bit Faroudja® DCDI Cinema Processing Faroudja® TureLife™
videoenhancer.
- SeamlessSwitching、FadeinFadeoutSwitching、Blend Switching
- Twosignalswitching ways:one keyswitchandPre.+Takeswitch
-
3 sets of custom dualpicture display mode, one key switch between
modes. Any PIP/PBP display. AIAO(Any In Any Out) function, any
interception andanyoutput.
- Inputsignalhotsparefunctiontoensureoutputmorestable.
- CustominputDVIEDIDtorealizeperfectpixeltopixeldisplay.
- Custom output format. Single unit maximum output horizontal 3840 pixelsorvertical1920pixels.
-
DVI input port supports APPLE PC. DVI Loop unlimited cascade to realize
sync. mosaic to drive indefinite LED lattice. Frame sync technology .
No miss alignment or delay between two adjacent image outputs.
-
Avariety ofcontrolmethods:wirelessWIFI、 IP/LAN、 frontpanelbutton、
infraredremote control、PC software,Ipad、mobile phone terminaland
etc..Flexibleoperation.
- 2 channels configurable external audio inputs. Plus HDMI、DP and SDI audiototal5channelsaudiosyncswitch.
- Built in 2 pieces LED sending cards(compatible 4 RJ45 ports sending cards.Cardsareoptional.)
- 24/7application,highreliabilityandstability
• Inputs
- Number/type
2×Video
1×YPbPr
2×VGA (VESA)
1×DP (VESA)
1×DVI (VESA)
1×HDMI (VESA/CEA-861)
1×EXT. (extended Video/DVI-I/SDI)
- Video system : PAL/NTSC
- Composite video amplitude/Impedance : 1V(p_p)/ 75Ω
- YPbPr format : SD/HD(CEA -861)
- YPbPr Amplitude/Impedance
Y= 1.0V(p_p)/ 75Ω
Pb= 0.35V(p_p)/ 75Ω
Pr= 0.35V(p_p)/ 75Ω
- VGA format : PC (VESA) . ≤2048x1152 _60Hz
- VGA Amplitude/Impedance : R,G,B = 0.7 V(p_p)/ 75Ω
- DP format : DisplayPort1.1 (VESA)
- DVI format
PC (VESA)
≤2304x1152_60Hz
HDMI1.3 (CEA -861)
Custom output format : width≤3840 height≤1920
- HDMI format (HDCP1.3)
PC(VESA) . ≤2304x1152_60Hz
HDMI1.3 (CEA -861) ≤1920x1080p_60Hz
- SDI format
SMPTE259M-C
SMPTE 292M
SMPTE 274M/296M
SMPTE 424M/425M
480i_60Hz
576i_50Hz
720p,1080i,1080p
- Audio : 2.0Vp-p/10KΩ
- Input connectors
Video : BNC
YPbPr : BNC×3
VGA : 15pin D_Sub(female)
DP : DisplayPort SMT female 20pin
DVI : 24+1 DVI_D
HDMI : HDMI port A type
SDI : BNC
• Outputs
- Number /Type
1×VGA(RGBHV)
2×DVI
- VGA/DVI resolution
1024×768_60Hz/75Hz
1080×1920_60 Hz
1200×1600_60 Hz
1280×1024_60Hz/75Hz
1366×768_60Hz
1440×900_60Hz
1536×1536_60 Hz
1600×1200_60Hz
1920×1080p_50Hz/60Hz
1920×1200_60 Hz
2048×1152_60Hz
2304×1152_60Hz
2560×816_60Hz
Custom output format(maximum output horizontal 3840 pixels or vertical 1920 pixels)
- VGA Amplitude/Impedance : R,G,B = 0.7 V(p_p)/ 75Ω
- Output ports
VGA OUT:15pin D_Sub( female)
DVI OUT1:24+1 DVI_D
DVI OUT2:24+1 DVI_D
• Others
-
Control methods : Wireless wifi,IP/LAN,front panel button,infrared
remote control, PC software,Ipad, mobile phone terminal and etc..
- Input voltage : 100-240VAC 50/60Hz
- Maximum power consumption : ≤25W
- Environment temperature : 0-45
- Environment humidity : 15-85%
- size (package) : 130mm(H)×350mm(W)×520mm(L)
- Weight : G.W.:5.7 Kg, N.W.:4.0 Kg
