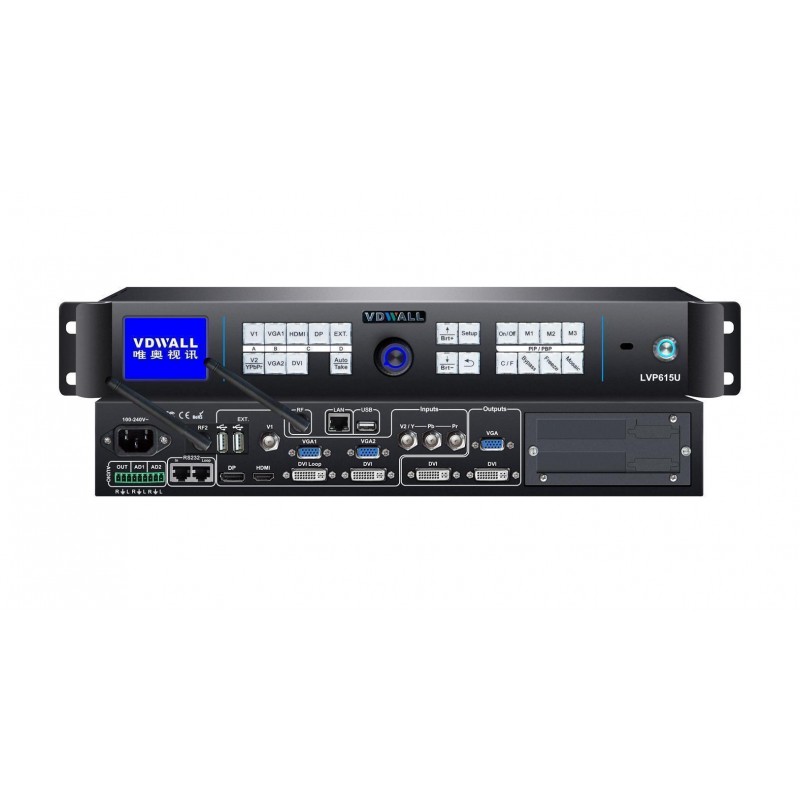

VDWALL LVP615U

rating

0 reviews / Write a review

Rp.0

Brands VDWALL
Product Code: VDWALL LVP615U
Availability: In Stock

Qty

Tags: VDWALL, Visual Display, Video Processor

Description
Reviews (0)

• LED HD Video Processor
• wireless WI-FI control&remote control
• pip/pbp,text overlay
• synchronic Multi-unit In Parallel
• LVP615U : Extend interface optional 1×Wi-Fi+2×USB

• Features
- New generation Faroudja® Real Color® professional LED video processor ， 10+ Bit Faroudja® DCDI Cinema Processing Faroudja® TureLife™ videoenhancer.
- SeamlessSwitching、FadeinFadeoutSwitching、Blend Switching
- Twosignalswitching ways：one keyswitchandPre.+Takeswitch
- 3 sets of custom dualpicture display mode, one key switch between modes. Any PIP/PBP display. AIAO(Any In Any Out) function, any interception andanyoutput.
- Inputsignalhotsparefunctiontoensureoutputmorestable.
- CustominputDVIEDIDtorealizeperfectpixeltopixeldisplay.
- Custom output format. Single unit maximum output horizontal 3840 pixelsorvertical1920pixels.
- DVI input port supports APPLE PC. DVI Loop unlimited cascade to realize sync. mosaic to drive indefinite LED lattice. Frame sync technology . No miss alignment or delay between two adjacent image outputs.
- Avariety ofcontrolmethods：wirelessWIFI、 IP/LAN、 frontpanelbutton、 infraredremote control、PC software，Ipad、mobile phone terminaland etc..Flexibleoperation.
- 2 channels configurable external audio inputs. Plus HDMI、DP and SDI audiototal5channelsaudiosyncswitch.
- Built in 2 pieces LED sending cards(compatible 4 RJ45 ports sending cards.Cardsareoptional.)
- 24/7application，highreliabilityandstability

• Inputs
- Number/type
   2×Video
   1×YPbPr
   2×VGA (VESA)
   1×DP (VESA)
   1×DVI (VESA)
   1×HDMI (VESA/CEA-861)
   1×EXT. (extended Video/DVI-I/SDI)
- Video system : PAL/NTSC
- Composite video amplitude/Impedance : 1V(p_p)/ 75Ω
- YPbPr format : SD/HD(CEA -861)
- YPbPr Amplitude/Impedance
   Y= 1.0V(p_p)/ 75Ω
   Pb= 0.35V(p_p)/ 75Ω
   Pr= 0.35V(p_p)/ 75Ω
- VGA format : PC (VESA) . ≤2048x1152 _60Hz
- VGA Amplitude/Impedance : R,G,B = 0.7 V(p_p)/ 75Ω
- DP format : DisplayPort1.1 (VESA)
- DVI format
   PC (VESA)
   ≤2304x1152_60Hz
   HDMI1.3 (CEA -861)
   Custom output format : width≤3840 height≤1920
- HDMI format (HDCP1.3)
   PC(VESA) . ≤2304x1152_60Hz
   HDMI1.3 (CEA -861) ≤1920x1080p_60Hz
- SDI format
   SMPTE259M-C
   SMPTE 292M
   SMPTE 274M/296M
   SMPTE 424M/425M
   480i_60Hz
   576i_50Hz
   720p,1080i,1080p
- Audio : 2.0Vp-p/10KΩ
- Input connectors
   Video : BNC
   YPbPr : BNC×3
   VGA : 15pin D_Sub(female)
   DP : DisplayPort SMT female 20pin
   DVI : 24+1 DVI_D
   HDMI : HDMI port A type
   SDI : BNC

• Outputs
- Number /Type
   1×VGA(RGBHV)
   2×DVI
- VGA/DVI resolution
   1024×768_60Hz/75Hz
   1080×1920_60 Hz
   1200×1600_60 Hz
   1280×1024_60Hz/75Hz
   1366×768_60Hz
   1440×900_60Hz
   1536×1536_60 Hz
   1600×1200_60Hz
   1920×1080p_50Hz/60Hz
   1920×1200_60 Hz
   2048×1152_60Hz
   2304×1152_60Hz
   2560×816_60Hz
   Custom output format(maximum output horizontal 3840 pixels or vertical 1920 pixels)
- VGA Amplitude/Impedance : R,G,B = 0.7 V(p_p)/ 75Ω
- Output ports
   VGA OUT:15pin D_Sub( female)
   DVI OUT1:24+1 DVI_D
   DVI OUT2:24+1 DVI_D

• Others
- Control methods : Wireless wifi,IP/LAN,front panel button,infrared remote control, PC software,Ipad, mobile phone terminal and etc..
- Input voltage : 100-240VAC 50/60Hz
- Maximum power consumption : ≤25W
- Environment temperature : 0-45
- Environment humidity : 15-85%
- size (package) : 130mm(H)×350mm(W)×520mm(L)
- Weight : G.W.:5.7 Kg, N.W.:4.0 Kg
