Features
• Compatible with industry-standard video input connectors in the market
- DVI connector : 1920×1080 @60Hz input
- HDMI 1.3 connector 1920×1080 @60Hz input
- 3G SDI connector 1920×1080 @60Hz input
- DP 1.1 connector 4K×2K@30Hz input
- HDMI 1.4 connector 4K×2K@30Hz input
• 4 groups (2 connectors in each group) of DVI output connectors of a single J6 unit for mosaic output Each group includes a main connector and a backup connector.
A maximum of 4 connectors can be used for mosaic output.
The mosaic layout can be 4×1, 1×4 or 2×2.
The maximum loading capacity can reach 9,200,000 pixels and the maximum mosaic width can be up to 15360 pixels.
• Dual system modes.
The J6 supports both Splicer and Switcher modes, which can meet different application requirements.
• Multiple window display
The J6 supports up to six 4K×2K windows with random layout. Each window supports cross connector output.
• HDMI connector for output monitoring
- Supports monitoring of a single input source, PVW or PGM.
- Supports monitoring of all input sources, PVW and PGM.
- Supports displaying of input resolution and refresh rate.
• Display control function
Allows you to black out or freeze the screen by simply clicking one button.
• EDID management
Supports input resolution management for DVI, HDMI and DP connectors.
• Transition effects
In Splicer mode, the J6 supports setting of transition effect for source switching.
In Switcher mode, the J6 supports setting of Take effect and effect duration.
• AUX
In Switcher mode, the J6 supports AUX setting
• BKG capturing
The J6 supports capturing of input source and PGM, and the captured image can be used as BKG.
• BKG settings
The J6 supports both image BKG and pure color BKG.
You can save at most 6 BKG images.
• Input color, window color and output color adjustable
• Preset management
You can create at most 10 custom presets and load the preset simply by clicking one button.
• Window template management
The J6 is built-in with 7 window templates.
You can load one of the window templates to quickly lay out the windows
• Multiple operation modes
You can operate the J6 via its front panel, the V-Can smart control software or C1 event controller.
• Visualized color LCD screen and distinct button indicators on front panel, simplifying system control operations.

Specifications
• Connector
Input :
- DVI : Input resolution up to 1920×1200@60Hz and downward compatible HDCP 1.4
- 3G-SDI : Input resolution up to 1920×1080@60Hz and downward compatible 3G-SDI loop output
- HDMI1.3 : Input resolution up to 1920×1080@60Hz and downward compatible HDCP 1.4
- DP1.1 : Input resolution up to 4K×2K@30Hz and downward compatible HDCP 1.3
- HDMI1.4 : Input resolution up to 4K×2K@30Hz and downward compatible HDCP 1.4

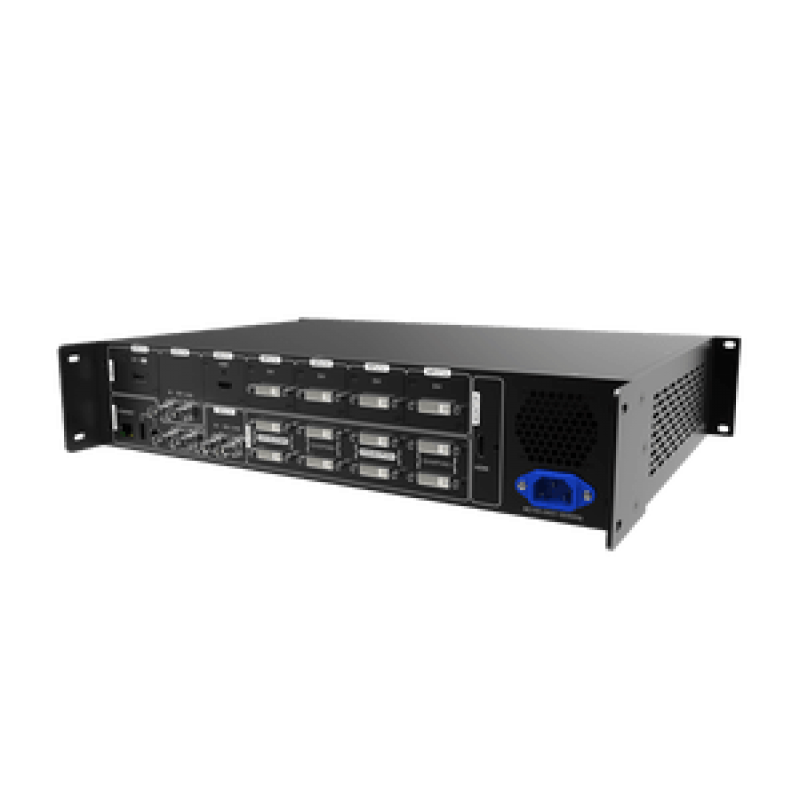

Output :
- DVI : 4 groups (2 connectors in each group) of DVI output connectors can be used for mosaic output. Each group includes a main connector and a backup connector.
- HDMI : A monitoring connector
Control :
- Ethernet : Communicate with PC or connect to the network.
- USB (Type-B) : Connect to the PC for device control.
- USB (Type-A) : A reserved connector

• Connector performance
Common input and output resolutions
DVI . HDMI1.3 :
- 800×600@50/60/75/85Hz
- 1366×768@50/60Hz
- 1024×768@48/50/60/75/85Hz
- 1152×864@75Hz
- 1280×720@48/50/60Hz
- 1280×768@48/50/60/75Hz
- 1280×800@50/60Hz
- 1280×960@50/60/85Hz
- 1280×1024@48/50/60/75/85Hz
- 1360×768@60Hz
- 1364×1024@48/50/85Hz
- 1366×800@50/60Hz
- 1400×1050@48/50/60/75Hz
- 1440×900@60/75/85Hz
- 1600×900@48/50/60Hz
- 1600×1200@48/50/60Hz
- 1680×1050@60Hz
- 1792×1280@60Hz
- 1920×1080@30/48/50/60Hz
- 1920×1200@50/60Hz
DP1.1 . HDMI1.4 :
- 800×600@50/60/75/85Hz
- 1024×768@48/50/60/75/85Hz
- 1152×864@75Hz
- 1280×720@48/50/60Hz
- 1280×768@48/50/60/75Hz
- 1280×800@50/60Hz
- 1280×960@50/60/85Hz
- 1280×1024@48/50/60/75/85Hz
- 1360×768@60Hz
- 1364×1024@48/50/85Hz
- 1400×1050@48/50/60/75Hz
- 1680×1050@60Hz
- 1792×1280@60Hz
- 1920×1080@30/48/50/60Hz
- 1920×1200@50/60Hz
- 2048×1080@30/48/50/60Hz
- 2048×1152@30Hz
- 2304×1152@60Hz
- 2048×1152@60Hz
- 2560×1080@50/60Hz
- 2560×1400@50/60Hz
- 2560×1600@50/60Hz
- 1440×900@60/75/85Hz
- 1600×900@48/50/60Hz
- 1600×1200@48/50/60Hz
- 3840×1080@30/50/60Hz
- 3840×2160@30Hz
3G-SDI :
- 480i, 576i
- 1280×720p@24/25/30/50/60Hz
- 1920×1080p@24/25/30/50/60Hz

Electrical specifications
- Power connector : AC100V~240V 50/60Hz.
- Power consumption : 50W
Operating environment
- Operating temperature : 0.~60.
- Storage temperature : -20.~60.
Physical specifications
- Dimensions : 482.6mm×379.5mm×94.7mm
- Package dimensions : 550mm × 561mm × 155mm
- Net weight : 5.3 kg
- Total weight : 15 kg
