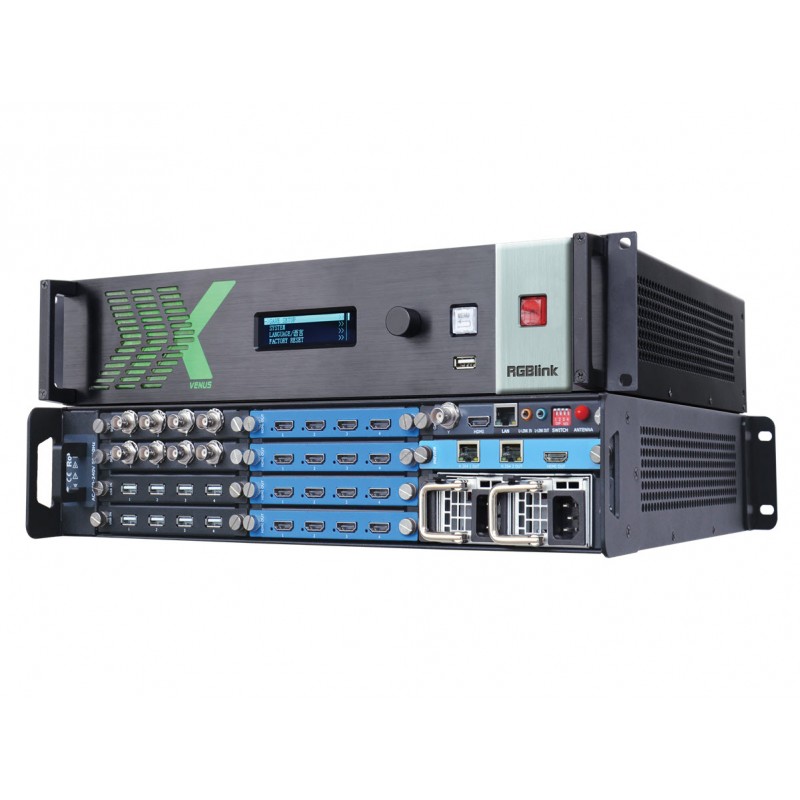

RGBlink X2
- Rp.0
- Brands RGBlink
- Product Code: RGBlink X2
- Availability: In Stock
Key Features• Up to 16x16 inputs/ouputs (4x4 slots)• Wide range of user fit smart detect signal choices for input and output• Auto input format detect and conversion• EDID Management on board• Genlock Y and Digital Reference built in• Real-time resolution adaptation• Isolated storage and frame rate conversion• Rotation in 90°increments• Color uniformity compensation technology• DSK and Chroma Key ..
Tags: RGBlink, Visual Display, Video Processor
Key Features
• Up to 16x16 inputs/ouputs (4x4 slots)
• Wide range of user fit smart detect signal choices for input and output
• Auto input format detect and conversion
• EDID Management on board
• Genlock Y and Digital Reference built in
• Real-time resolution adaptation
• Isolated storage and frame rate conversion
• Rotation in 90°increments
• Color uniformity compensation technology
• DSK and Chroma Key features
Overview
• X2 is a multiple output video processor, offering up to 16 outputs via four card-frame style slots.
Output signal choices include HDMI, 3G-SDI and H.264. On the input side there are similarly four slots, supporting up to a total of 16 video inputs.
Options for input include VGA, CVBS, USB Media, 3G-SDI as well as a multi-signal 4K in option.
• X2 combines truly seamless, fade in fade out, glitch-free switching with advanced scaling technologies to meet the requirements of high quality, high resolution video applications, and with multi-mode operations built right in, X2 can equally be used as a video wall processor, a presentation processor or a dynamic router.
• EDID management is built in enabling wide signal support, and faciliting any-signal cross-conversion for output.
Real-time resolution adaptation, color uniformity compensation technology are also on board.
• From the front panel operation check status and set IP address, them connect remotely over a LAN to XPOSE for dynamic over-the-wire configuration of X2
• X2 is a powerful yet economical solution, ideal for video wall applications, supporting multi-window, multi-layer video configurations across the output pixel space.
Specification :
Connectors
- Input
4 slots, up to 16 inputs
Select from :
- HDMI 1.3 Module : 4 x HDMI-A
- SDI(SD/HD/3G) Module : 4 x BNC
- USB Module : 4 x USB
- CVBS Module : 4 x BNC
- VGA Module : 3 x DB15
- H.264 Module : 4 x RJ45
- 4K Module : 1 x HDMI&LOOP| 1 x DP&LOOP
- HDBaseT Module : 4 x RJ45
- Output
4 slots, up to 16 outputs
Select from :
- HDMI 1.3 Module : 4 x HDMI-A
- SDI(SD/HD/3G) Module : 4 x BNC
- HDBaseT Module : 4 x RJ45
- Preview
Optional :
- IP Streaming Module : 1 x HDMI-A | 2 x RJ45
- Communication
- Ulink Control : 1 x In | 1 x Out
- LAN : 1 x RJ45
- Genlock : 1 x BNC | 1 x HDMI-A
- Power : 2 slots . 2 x IEC
• Performance
Input Resolutions :
• SDI :
SMPTE
480i | 576i | 720p@50/59.94/60 | 1080i@59.94/60| 1080p@23.98/24/25/29.97/30/50/59.94/60 | 1080psf@23.98/24/25/29.97/30/50/59.94/60
• HDMI 1.4 | DP 1.1a
- SMPTE
480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60| 1080p@50/59.94/60 | 2160p@30
- VESA
800x600@60 | 1024x768@60 | 1280x1024@60 | 1366x768@60 | 1440x900@60 | 1600x1200@60 | 1920x1080@60 | 3840x2160@24/25/30
• VGA
- VESA
800x600@60 | 1024x768@60 | 1280x1024@60 | 1366x768@60 | 1440x900@60 | 1600x1200@60 | 1920x1080@60
• CVBS
- SMPTE : 480i | 576i
• HDMI | DP
- SMPTE
480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60 | 2160p@50/60
- VESA
800x600@60 | 1024x768@60 | 1280x1024@60 | 1366x768@60 | 1440x900@60 | 1600x1200@60 | 1920x1080@60 | 3840x2160@24 | 3840x2160@25 | 3840x2160@30 | 3840x2160@60
• Output Resolutions
Select from below or configured customized :
- SDI
SMPTE :
720p@50/59.94/60| 1080p@50/59.94/60
- HDMI | HDBaseT
SMPTE :
720p@50/59.94/60 | 1080p@50/59.94/60
VESA :
800x600@60 | 1024x768@60/75/85 | 1280x720@50/59.94/60 | 1280x800@60 | 1280x960@60 | 1280x1024@60/75/85 | 1400x1050@60 | 1600x1200@60 | 1920x1080@23.98/24/25/29.97/30/50/59.94/60 | 2048x1152@60
• Supported Standard
- SDI : 3G
- HDMI : 1.4
- DP : 1.1a
- VGA : UXGA
- HdbaseT : 1.0
- USB : 2.0
• Grey Level : 12bit
• Power
- Input Voltage : 100V~240V 50/60HZ auto adjusted
