Key Features
• Scalable videowall processing for large videowall with up to 8 displays or more
• Card frame videowall processing system available with 6 slots
• Scalable, field-expandable systems
• High speed, dedicated video/graphic bus delivers real-time performance, each channel up to 4.25Gbps
• Seamless switching between the inputs and display windows or layers
• Multiple cascade to create un-limit real time display resolution
• Local control panel as option
• Upload and display stored images
• Output max supports 16 layers operation, and single output max supports 4 layers
• Input module max supports 4 layers operation
Overview

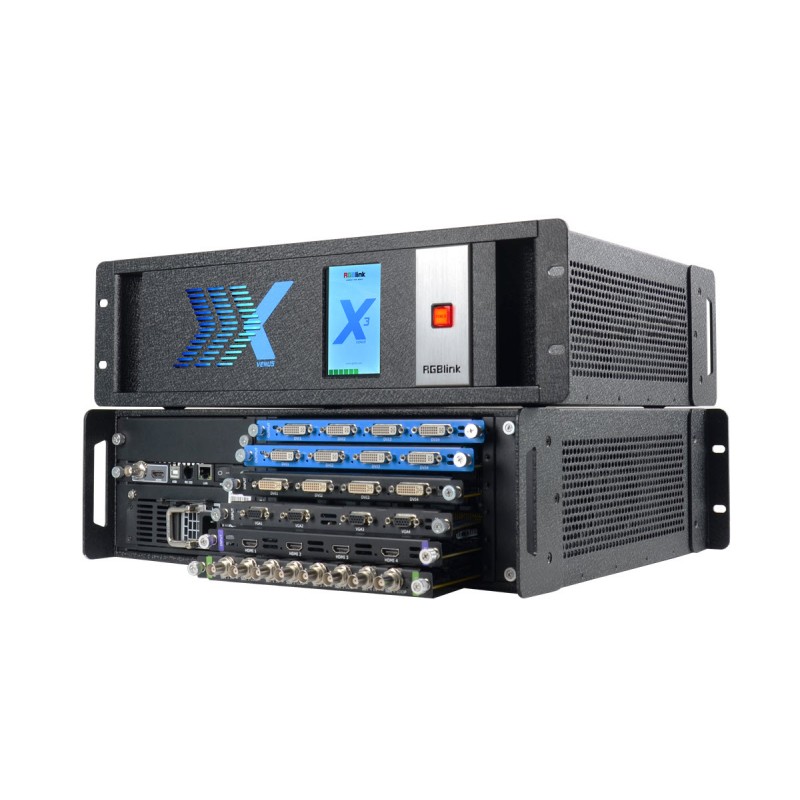

• X3, part of the RGBlink Universal Processor range, is a scalable, expandable videowall processor that is dynamically configurable across a wide range of modern display applications. Features high performance video scaling with one or more videos able to be displayed across a display surface of up to eight output displays.

• X3 has four input slots allowing up to sixteen inputs to be install. Two slots and up to eight outputs may be fitted. All inputs and outputs are modular with accepting RGBlink SmartSlot modules including 3G-SDI, HDMI, DVI, DisplayPort, Composite, H.264 and USB Media. Multiple X3 processors can be cascaded to create very large display arrays. A dedicated, high-speed video/graphic bus maintains real-time performance even regardless of the signal load or type.

• While X3 is ideal for videowall continuous display environments, the processor is truly multi-application with operation modes including Videowall, Presentation, Matrix, 3D and more. All switching is seamless

• Control and configuration is undertaken interactively via RGBlink XPOSE or T Series control consoles.
Connectors
Input :
4 slots, up to 16 inputs, Select from
- 4K@60 Module : 1 x DVI | 2 x HDMI | 2 x DP
- HDMI Module : 4 x HDMI
- DVI Module : 4 x DVI
- USB Module : 4 x USB A
- 12G SDI Module : 4 x BNC
- HDBaseT Module : 4 x RJ45
- H.264 Module : 4 x RJ45
- VGA Module : 4 x DB15
- CVBS Module : 8 x BNC
Output
2 slots, up to 8 outputs, Select from
- HDMI 4K Module : 2 x HDMI
- ARO Module : 4 x DVI
- DVI Module : 4 x DVI
- 3G SDI Module : 4 x BNC
- HDMI Module : 4 x HDMI
- H.264 Module : 4 x RJ45
- HDBaseT Module : 4 x RJ45
Communication
- LAN : 1 x RJ45
- RS232/Serial : 1 x RJ11
- USB : 1 x USB-B
- Genlock Y : 1 x BNC
- Digital Ref : 1 x HDMI
Power : 2 slots . Up to 2 x IEC (1 standard)
• Performance
Input Resolutions :
SDI
- SMPTE :
480i | 576i | 720p@50/60 | 1080i@59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60 | 1080psf@23.98/24/25/29.97/30 | 2160p@23.98/24/25/29.97/30/50/59/59.94/60
DVI | HDBaseT | USB
- SMPTE :
480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60
- VESA :
800x600@60 | 1024x768@60 | 1280x768@60 | 1280x1024@60 | 1600x1200@60 | 1920x1080@60 | 1920x1200@60 | 2048x1152@60 | 2560x816@60
HDMI | DisplayPort
- SMPTE
480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60 | 2160p@30/50/60
- VESA :
800x600@60 | 1024x768@60 | 1280x768@60 | 1280x1024@60 | 1600x1200@60 | 1920x1080@60 | 1920x1200@60 | 2048x1152@60 | 2560x816@60 | 3840x2160@24/25/30/60
Output Resolutions
Select from below or set customised :
SDI
- SMPTE :
720p@50/59.94/60 | 1080p@50/59.94/60
DVI | HDBaseT
- SMPTE :
480i | 576i | 720p@50/59.4/60 | 1080p@50/59.54/60
- VESA :
800x600@60 | 1024x768@60/75/85 | 1280x720@50/59.94/60 | 1280x800@60 | 1280x960@60 | 1280x1024@60/75/85 | 1400x1050@60 |1600x1200@60 | 1920x1080@50/60 | 2048x1152@60
HDMI
- SMPTE :
480i | 576i | 720p@50/59.4/60 | 1080p@50/59.54/60
- VESA :
800x600@60 | 1024x768@60/75/85 | 1280x720@50/59.94/60 | 1280x800@60 | 1280x960@60 | 1280x1024@60/75/85 | 1400x1050@60 |1600x1200@60 | 1920x1080@50/60 | 2048x1152@60 | 3840x2160@30/60
Supported Standards
- SDI : SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
- HDMI : 2.0
- DVI : DVI
- DisplayPort : 1.2
- VGA : UXGA
- USB : 2.0
Grey Level : 12bit

Power
- Input Voltage : AC85V~264V, 50/60Hz
- Max Power : 205W
Environment
- Temperature : 0-55
- Humidity : 10%~90% RH
Physical
Weight :
- Net (device) : 12.3kg
- Packaged : 20.4kg
Dimensions :
- Net (device) : 485 x 587x 135mm
- Packaged : 635 x 545 x 275mm
