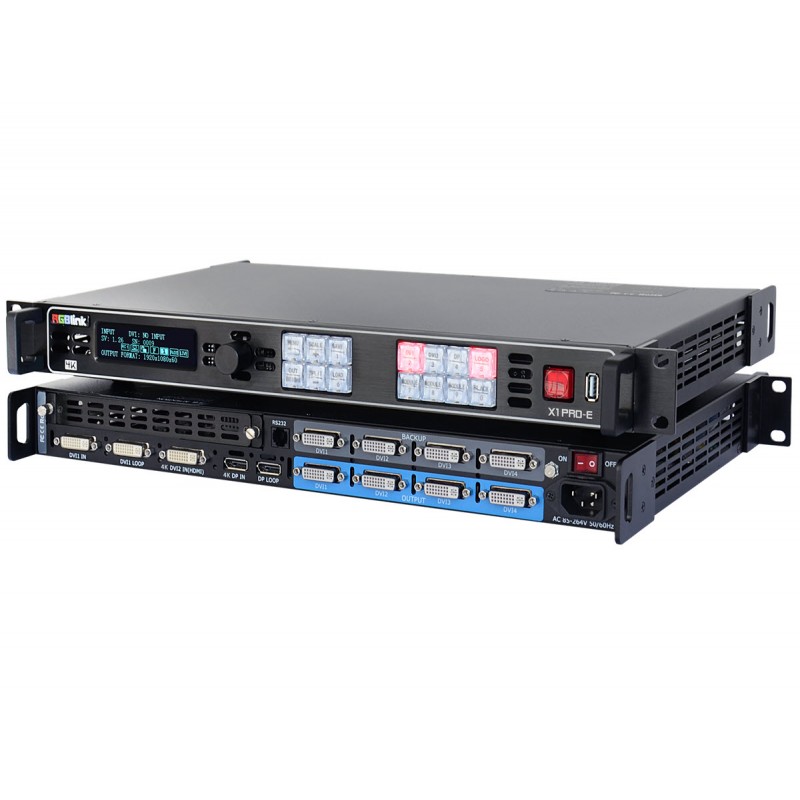

RGBlink X1pro e
- Rp.0
- Brands RGBlink
- Product Code: RGBlink X1pro e
- Availability: In Stock
Key Features• 8Kx1K, 4Kx2K and more• Pixel-to-pixel scaling• Independent scaling• Multiple operation modes including 2K and Dual 2K preview• Seamless switching• Redundant outputs and hot back up facility• Test patterns built in • Compact 1U housingOverview• Essential 4K Video Scaling and Splicing, X1profeatures four 2K DVI outputs providing a full 4K split from 4K inputs.• X1pro e offers mulitple ..
Tags: RGBlink, Visual Display, Video Processor
Key Features
• 8Kx1K, 4Kx2K and more
• Pixel-to-pixel scaling
• Independent scaling
• Multiple operation modes including 2K and Dual 2K preview
• Seamless switching
• Redundant outputs and hot back up facility
• Test patterns built in
• Compact 1U housing
Overview
• Essential 4K Video Scaling and Splicing, X1profeatures four 2K DVI outputs providing a full 4K split from 4K inputs.
• X1pro e offers mulitple operation modes to extend usage application beyond 4K split to splicing applicaitons inlcuding 8Kx1K, 2Kx4K and more.
• 2K and Dual 2K ($Kx1K) modes offer preview capability for even more control.
• Fitted sparandard DVI and DisplayPort connecots, X1pro offers three option slots for 2K inputs sources which may include USB2.0 media and 3G-SDI.
• Control directly from the front panel or connect and control from XPOSE via RS232
• X1pro e is intutive and fast to use, ideal for everyday video processing beyond 2K
Connectors
• Input
Standard with :
- 2 x DVI : In/loop
- 1 x DVI : HDMI/HDCP supported
- 2 x DisplayPort : In/loop
3 option slots
Select from : SDI | DVI | HDMI | VGA | DisplayPort | CVBS | USB2.0
• Output
- 4 x DVI
- 4 x DVI : Loop/backup
Communication :
- 1 x RJ11 : Serial RS232 In
- 1 x USB-A : Serial USB In
Power : 1 x IEC
Performance
• Input Resolutions
• DVI
SMPTE :
525@29.97/59.94 NTSC | 625@25/50 PAL | 720p@50/59.94/60Hz | 1080i@50/59.94/60Hz | 1080p@50/59.94/60Hz
VESA :
800x600@60Hz | 1024x768@60Hz | 1280x768@60Hz | 1280x1024@60Hz | 1600x1200@60Hz | 1920x1080@60Hz | 3840x1080@60Hz | 3840x2160@30Hz
• DisplayPort
VESA :
3840x2160@24/25/30Hz | 4096x2160@24Hz
• VGA
SMPTE :
525@29.97/59.94 NTSC | 625@25/50 PAL | 720p@50/59.94/60Hz | 1080i@50/59.94/60Hz | 1080p@50/59.94/60Hz
VESA :
800x600@50/60Hz | 1024x768@50/60Hz | 1280x1024@50/60Hz | 1440x900@50/60Hz | 1600x1200@50/60Hz
• Output Resolutions
Select from below or configure customised
• DVI
SMPTE :
720p@50/60Hz | 1080p@50/60Hz
VESA :
800x600@60Hz | 1024x768@75Hz | 1280x720@50/60Hz | 1280x768@60Hz | 1280x800@60Hz | 1280x1024@60Hz | 1360x768@60HZ | 1400x1050@60Hz | 1440x900@60Hz | 1600x1200@60Hz | 1680x1050@60Hz | 1920x1080@60Hz | 1920x1200@60Hz | 2048x1152@60Hz | 2560x816@60Hz
Support Standards :
- DVI : DVI-I
- HDMI : 1.4
- DisplayPort : 1.2
Grey Level : 10 bit
Power
- Voltage : AC 100~264V 50/60Hz
- Max Power : 65W
Environmental
- Temperature : -25°C – 55°C
- Humidity : 20% - 90% RH
Physical
Weight
- Nett : 2.7kg
- Packaged : 6.3kg
Dimension
Nett : 480mm x 303mm x 45mm
Packaged : 535mm x 355mm x 130mm
