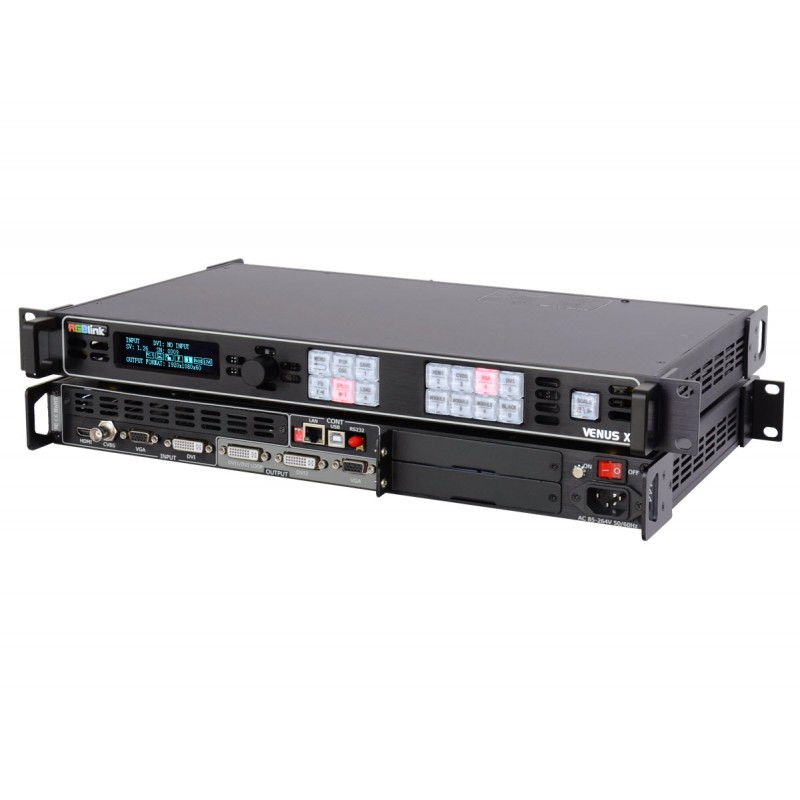

RGBlink X1
- Rp.0
- Brands RGBlink
- Product Code: RGBlink X1
- Availability: In Stock
Key Features• Seamless switching between inputs wkit transition effects• Picture-in Picture and Picture by Picture• Replaceable input optional modules• User-defined resolutions• EDID Management on board• Remote control from XPOSE or XPOSE mobile• Output up to 2560x1152@50HzOverview• X1 is vdeo processing for every day applications. A revolution in compaxt processing, X1 features the unique RGBlink..
Tags: RGBlink, Visual Display, Video Processor
Key Features
• Seamless switching between inputs wkit transition effects
• Picture-in Picture and Picture by Picture
• Replaceable input optional modules
• User-defined resolutions
• EDID Management on board
• Remote control from XPOSE or XPOSE mobile
• Output up to 2560x1152@50Hz
Overview
• X1 is vdeo processing for every day applications. A revolution in compaxt processing, X1 features the unique RGBlink modular signal system allowing users to fit a wide range of signal options in up to three slot positions.
• X1 combines seamless fade in fade out with advanced scaling technologies for applications from events to dgital signage.
• On board featrues include PIP/PBP presets, digital video transitions between sources and EDID management is built in for enhanced comptability, while output resolutions may be customised to requirement..
• Control X1 from the front panel, with large illuminated buttons for signals and OLED dispaly, or control and configure via the dedicated desktop software or RGBlink XPOSE mobile.
• Control compatible LED Sender Cards directly from the X1 menu when Sender Cards are fitted into the dual slots provided
• Connectors
Input
Standard with :
- 1 x HDMI
- 1 x CVBS
- 1 x DVI
3 option slots
Select from : SDI | DVI | HDMI | VGA | DisplayPort | CVBS | USB2.0 | Audio Management
Output
Standard with :
- 2 x DVI
- 1 x VGA
Communication
- 1 x RJ45 : LAN
- 1 x RJ11 : Serial RS232 In
- 1 x USB-B : Serial USB In
Power : 1 x IEC
• Performance
Input Resolutions
• CVBS
- SMPTE
525@29.97/59.94 NTSC | 625@25/50 PAL
• VGA
- VESA
800x600@60Hz | 1024x768@60Hz | 1280x1024@60Hz | 1440x900@60Hz | 1600x1200@60Hz
• DVI | HDMI
-SMPTE
525@29.97/59.94 NTSC | 625@25/50 PAL | 720p@50/59.94/60Hz | 1080i@50/59.94/60Hz | 1080p@50/59.94/60Hz
- VESA
800x600@60Hz | 1024x768@60Hz | 1280x768@60Hz | 1280x1024@60Hz | 1600x1200@60Hz | 1920x1080@60Hz
Output Resolutions
Select from below or configure customised
• DVI
- SMPTE
720p@50/59.94/60Hz | 1080p@50/59.94/60Hz
- VESA
800x600@60Hz | 1024x768@60/75/85Hz | 1280x720@50/60Hz | 1280x800@60Hz | 1280x1024@60Hz | 1360x768@60Hz | 1400x1050@60Hz | 1440x900@60Hz | 1600x1200@60Hz | 1680x1050@60Hz | 1920x1080@50/60Hz | 1920x1200@60Hz | 2048x1152@60Hz | 2560x812@60Hz | 2560x816@60
Support Standards
- DVI : DVI-I
- HDMI : 1.3
- VGA : UXGA
Grey Level : 10 bit
• Power
- Voltage : AC 100~240V 50/60Hz
- Max Power : 65W
• Environmental
- Temperature : 0°C – 40°C
- Humidity : 10% - 85% RH
• Physical
Weight
- Nett : 2.7kg
- Packaged : 4.5kg
• Dimensions
- Nett : 480mm x 303mm x 45mm
- Packaged : 535mm x 355mm x 130mm
