• SAT: 1” driver + 8” woofer 1.5” VC
• SUB: 12” woofer 3” VC
• 1600W peak power with SMPS
• SPL 121dB + 124dB
• Frequency range 45 Hz - 20 kHz
• Plywood cabinets with anti-scratch paint
• Dual-angle speaker stand adapter
• 4 wheels on SUB
• SPEAKON cables included
The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package.
For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy.
Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service.
The dual-angle pole holder featured in 8”, 10”, 12” and 15” models offers the possibility to obtain a more uniform coverage of the audience.
For the high frequency reproduction of LITE Series we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion.
The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses.

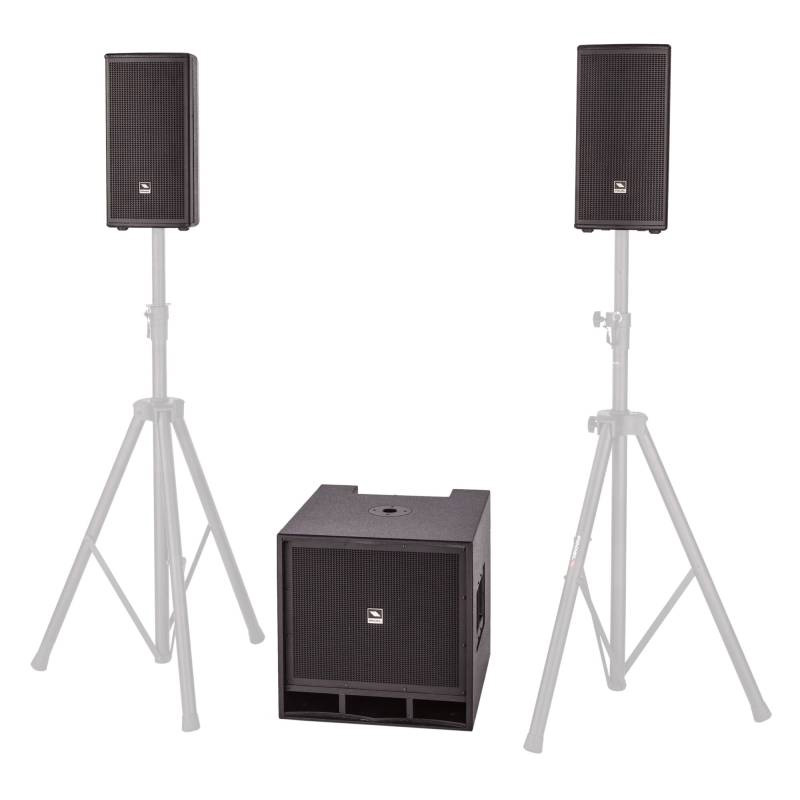

The LITE Series includes 6 active models ranging from 6.5” to dual 15” woofers, plus 1 satellites + subwoofer system.
The extremely lightweight power modules used in the active models feature the latest technologies for amplification, such as Switch Mode Power Supply and CLASS D output stages, which provides a massive amount of power with a reduced weight.
The power modules are hosted in fully-sealed die-cast aluminum boxes that provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling.
Each module includes a sophisticated pre-amp section with up to 24 dB/ oct. phase aligned crossover filters and active EQ fi lters for the system’s fine tuning.
The DUAL LIMITER circuit ensures an undistorted sound even at the loudest level and a total loudspeaker protection.
The LT loudspeaker systems can be combined with the SW subwoofers, available in 5 models and capable of providing the perfect low frequency extension for each model of the series.
• SAT: 1” compression driver + 8” woofer with 1.5” VC
• SUB: 12” woofer with 3” VC
• 1600W peak power
• SAT: 2x200W RMS CLASS AB
• SUB: 400W RMS CLASS D
• Switch Mode Power Supply (SMPS)
• SUB LEVEL control
• SPL MAX 121dB + 124dB
• Frequency response 45 Hz - 20 kHz
• Plywood cabinets with anti-scratch paint
• SAT cabinet with dual-angle speaker stand adapter

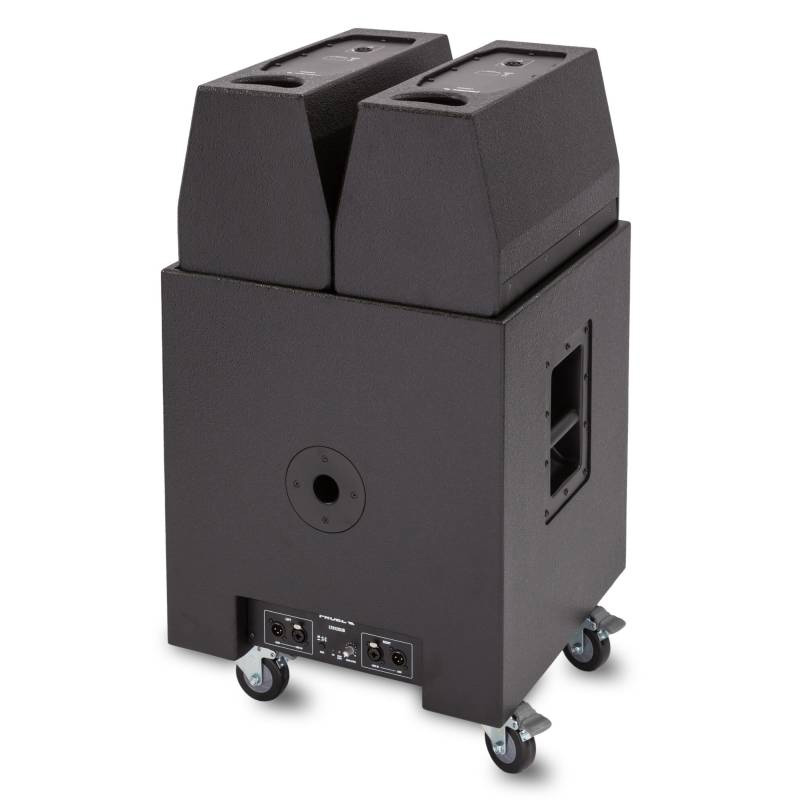

• SUB cabinet with 4 wheels and space for transporting the satellites on top
• 1 rear handle (SAT), 2 aluminum side handles (SUB)
• Two SPEAKON power cables included
TECHNICAL SPECS

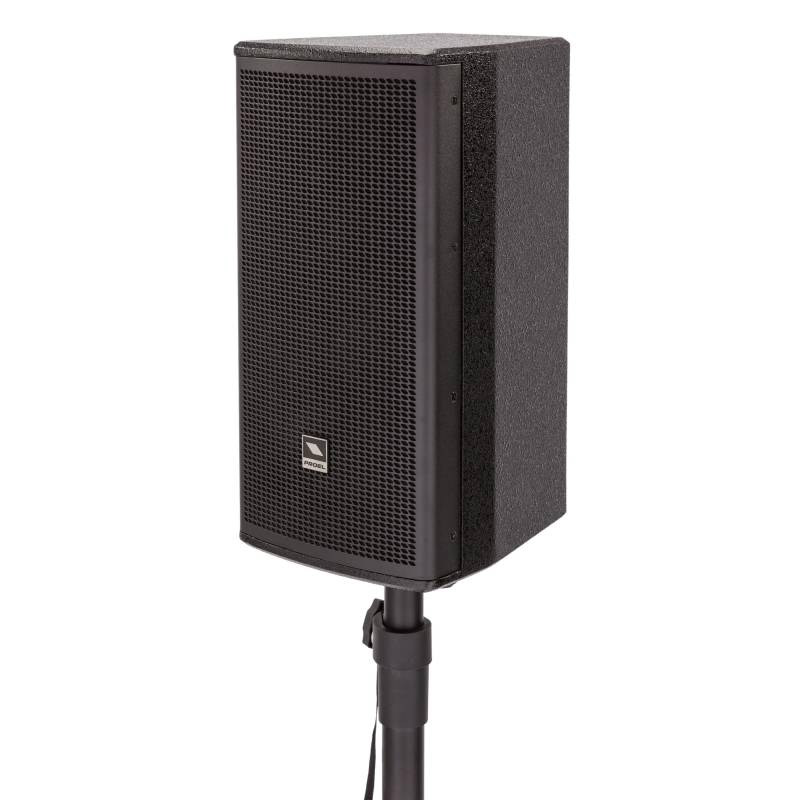

LT812SAT
- System type : 2-way vented enclosure
- High Frequency Device : 1” compression driver with 1" VC
- Low Frequency Device : 8” woofer with 1.5” VC
- Angular Coverage : 60° H x 40° V
- Total peak power : 1600 W
- Amplifier Continuous Power : 2 x 200 W Class AB
- Power Supply : SMPS
- Processing : Analog
- Frequency Response : 45 Hz - 20 kHz
- Max SPL : 121
- Connectors : 1 x SPEAKON
- Construction : Plywood
- Cabinet Colour : Black
- Handles : 1 x rear
- Mounting Pole : 1 x bottom, dual angle
- Dimensions (W x H x D) : 220 x 442 x 260 mm
- Weight : 7.5 kg / 16.5 lbs.

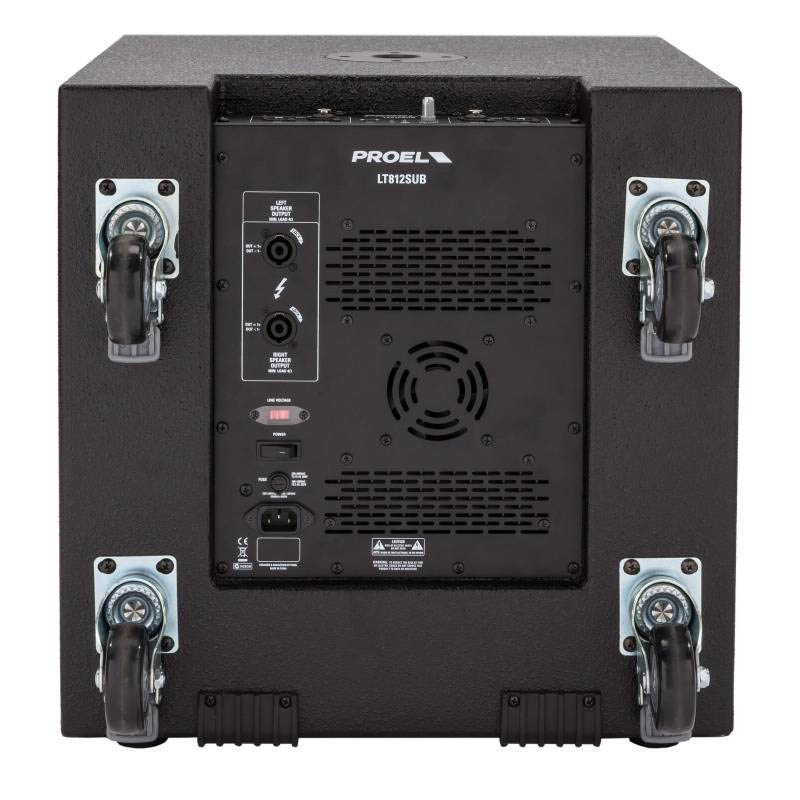

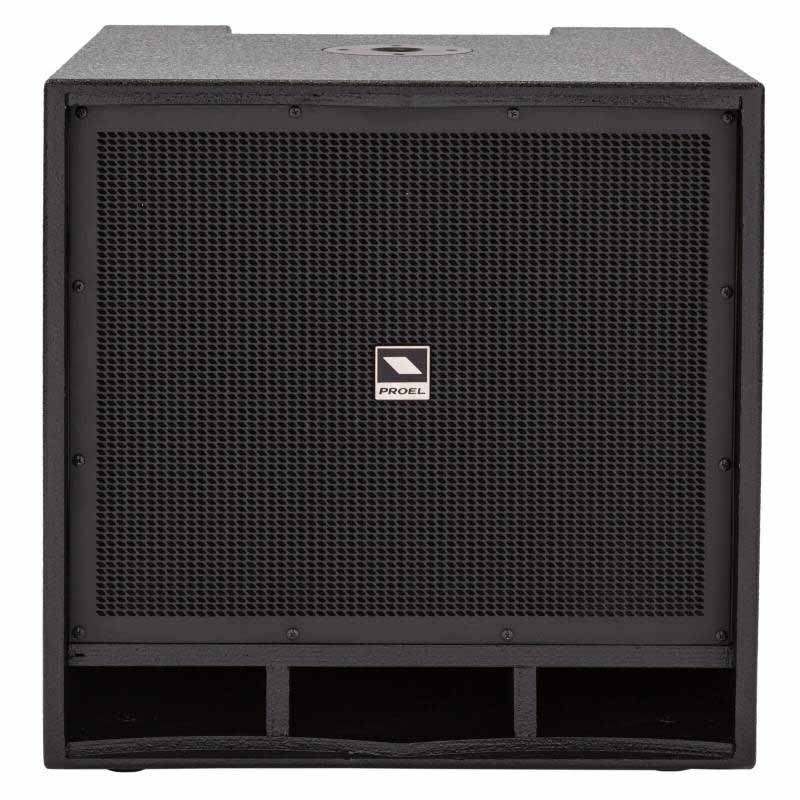

LT812SUB
- System type : Vented sub-woofer
- Low Frequency Device : 12” woofer with 3” voice coil
- Total peak power : 1600 W
- Amplifier Continuous Power : 400 W Class D
- Power Supply : SMPS
- Processing : Analog
- Frequency Response : 45 Hz - 20 kHz
- Max SPL : 124

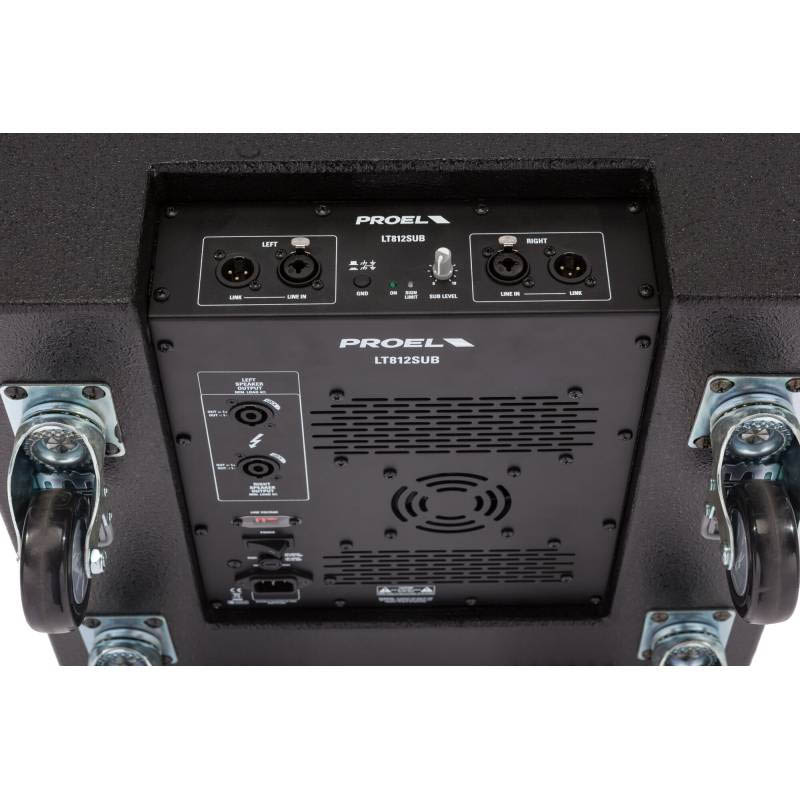

- Connectors : IN: 2 x COMBO, LINK: 2 x XLR M; OUT: 2 x SPEAKON
- Controls : SUB LEVEL, GND LIFT
- Construction : Plywood
- Cabinet Colour : Black
- Handles : 2 x sides
- Mounting Pole : 1 x top
- Power Supply : 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
- Dimensions (W x H x D) : 475 x 462 x 610 mm
- Weight : 34 kg / 74.9 lbs
