Active 2-way coaxial stage monitor
1” driver with 1” VC
10” woofer with 2” VC
500 W total Peak Power
2 EQ PRESETS for Monitor or FOH
SPL MAX 123 dB
Frequency range 70 Hz - 20 Khz
Durable polyurethane paint
Recessed connection panel for added protection

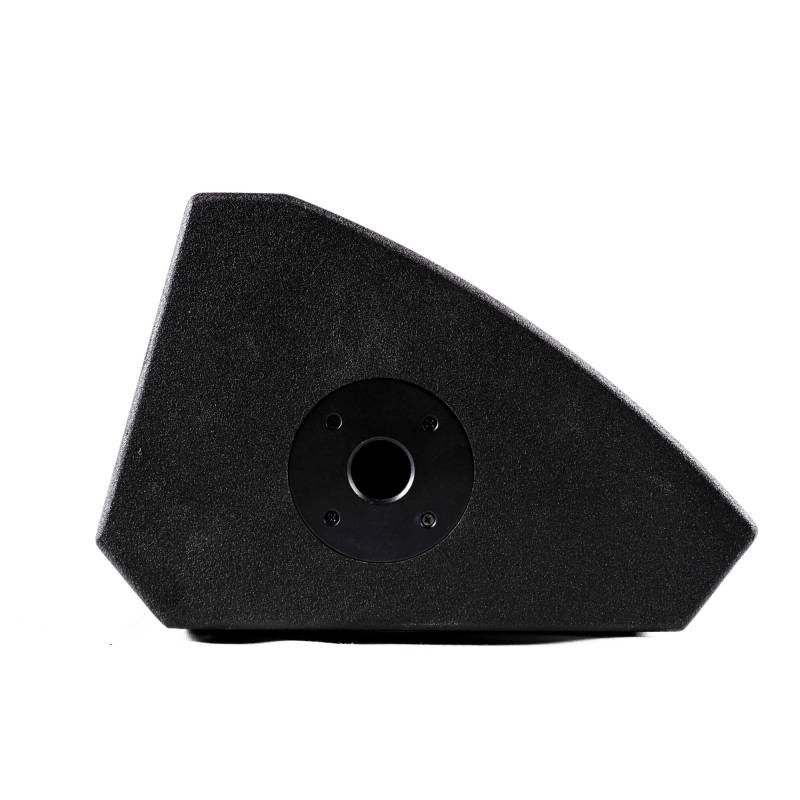

Pole socket
WX series stage monitors, with a perfect sound intelligibility, a high SPL and an ultra-compact format, can offer a professional yet affordable monitoring solution able to fit into stages of any size.
The transducers’ coaxial design not only provides an optimal HF and LF alignment and a controlled directivity for a perfect listening from any position, but it also helps to minimize the size of the monitor.

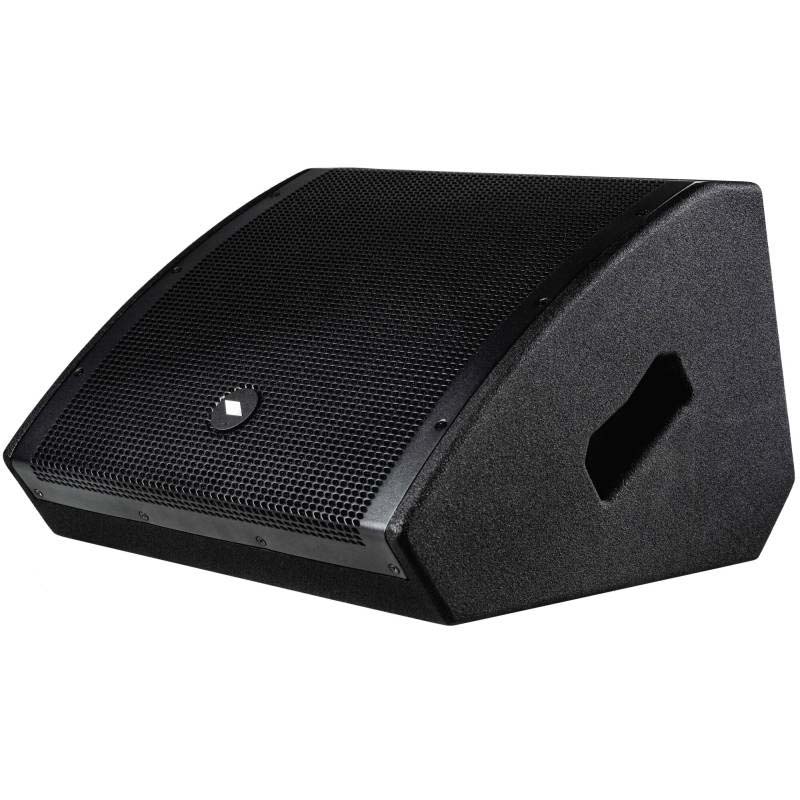

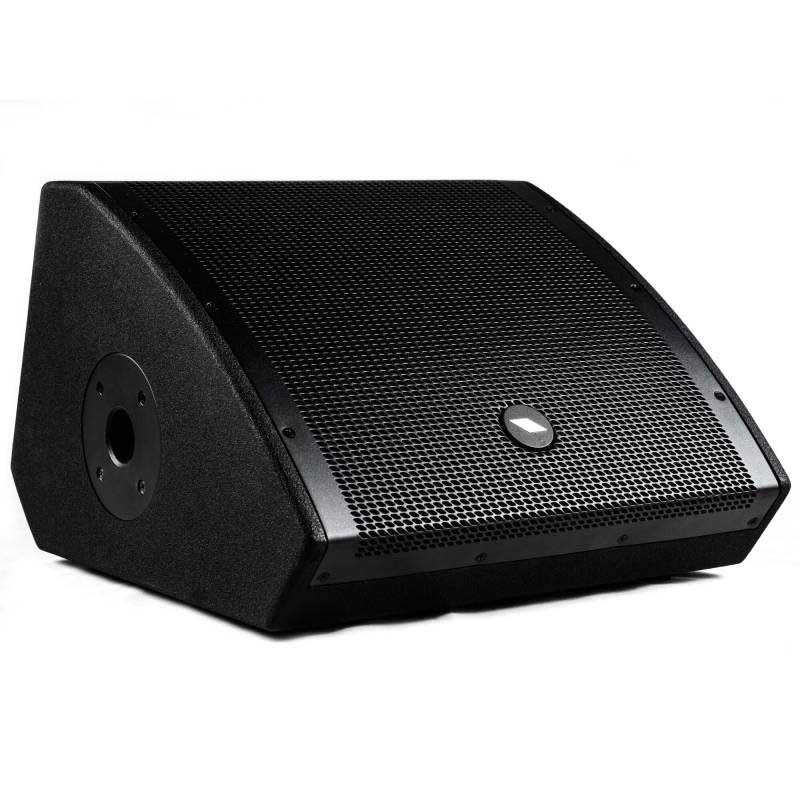

The ultra-compact enclosures, with integrated handle and pole socket, have been designed to feature a very low profile and, therefore, a minimal footprint on stage.
The cabinets are finished with extra-strong polyurethane painting, making them resistant to any abuse.
The lightweight 500W CLASS D amplifier module with SMPS provides a high output that results in an unexpected SPL for such small loudspeakers.
The sophisticated analogue processing provides a detailed response, particularly in the vocal range, and a remarkable resistance to feedback.
Two EQ PRESETS are available for the use of the speaker not only for stage monitoring (MONITOR), but also as a MAIN SOUND SYSTEM (FOH) if necessary.
The WX monitors are available in two models, offering the right solution for different monitoring situations.
The ultracompact WX8A can provide a high-quality monitoring also in very small spaces and it can give its best with speech, vocals and acoustic instruments.
WX10A, with a higher SPL and a full-range response, is ideal for vocals, guitar, horns and electronic instruments or as a monitor for DJs.
• Active 2-way coaxial stage monitor
• 1” compression driver with 1” VC
• 10” woofer with 2” VC
• 500 W total power
• Class D power amplifier with SMPS
• Dual LIMITER circuit
• 2 optimized EQ PRESETS for MONITOR or FOH (Front-Of-House) use
• SPL MAX 123 dB
• Frequency response 70 Hz - 20 KHz
• Ultra-compact, lightweight cabinet with black ultra-durable polyurethane paint

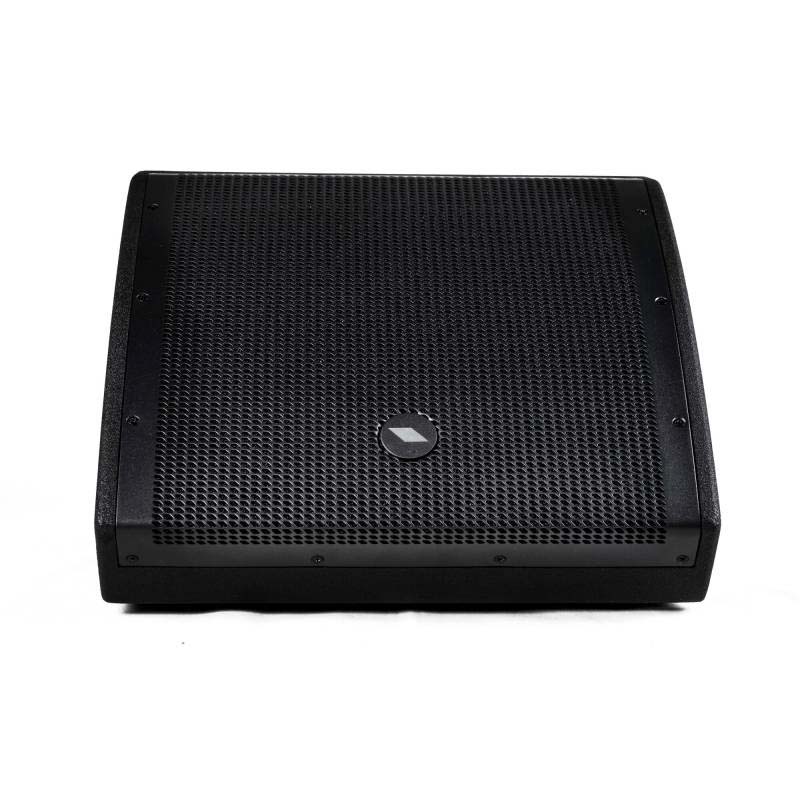

• Reinforced metal grille

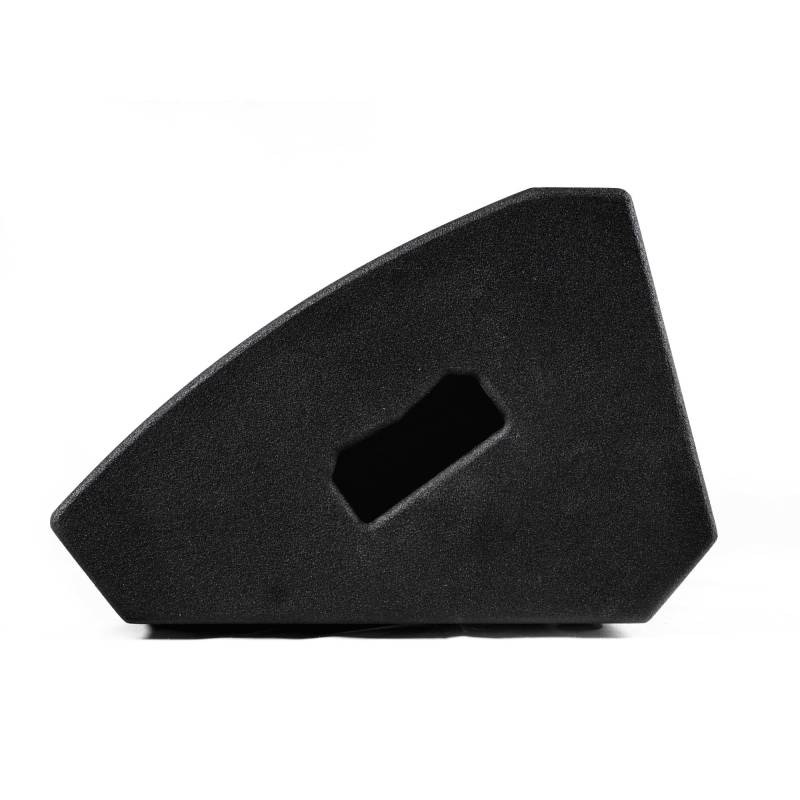

• Recessed handle for easy transport
• Pole socket
TECHNICAL SPECS
- System type : 2-way coaxial vented stage monitor
- Low Frequency Device : 10” woofer with 2"VC
- High Frequency Device : 1” compression driver with 1"VC
- Angular Coverage : 60°
- Frequency response : 70 Hz - 20 kHz
- Max SPL at 1mt (peak) : 123 dB
- Amplifier Continuous Power : 250W CLASS D with SMPS
- Input Impedance : 30 kohm balanced, 15 kohm unbalanced
- Input Sensitivity : -10 dBu

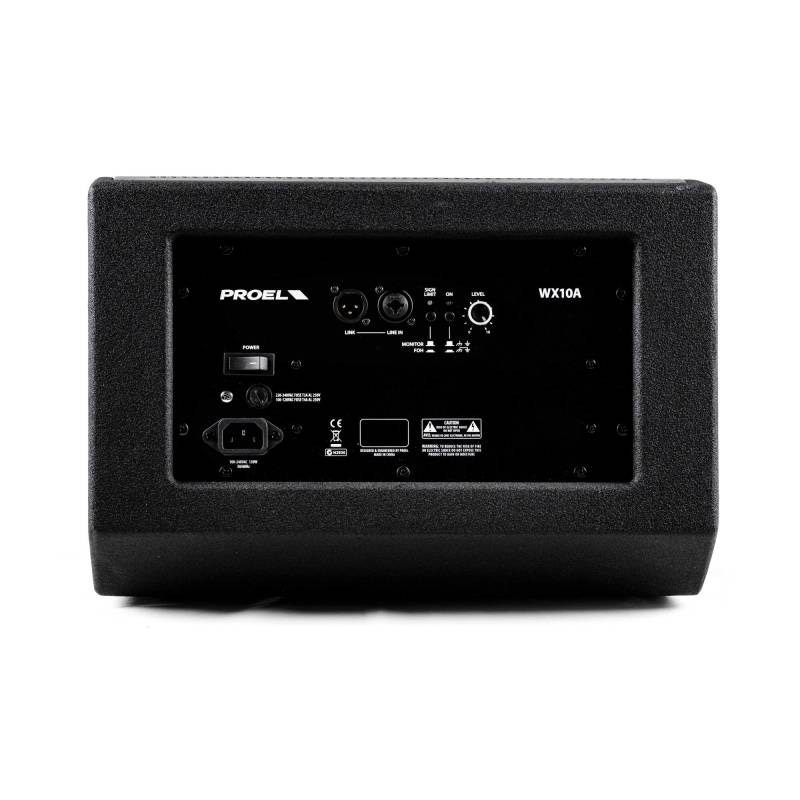

- Controls : LEVEL, PRESET selector (MONITOR, FOH), GND lift
- Connectors : INPUT: COMBO (XLR-F/JACK), LINK: XLR-M
- Power Supply : 230 VAC or 115 VAC - 50/60 Hz
- Rated Consumption* : 200 W
- Construction : MDF with black anti-scratch polyurethane paint
- Pole Adapter : 1 x side
- Handles : 1 x side
- Monitor taper : 36°
- Weight : 10 kg (22 lb)
- Dimensions (W x H x D) : 390x396x270 mm
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
