• 2-way Active loudspeaker system. - 35” compression driver.
• 90° x 60° horn. - 12” woofer with 2” VC.
• 1000 W peak Class D amplifier with SMPS.
• DSP with FIR filters and 5 DSP presets.
• 3 Ch mixer with Stereo Bluetooth
• SPL MAX: 127 dB.
• Frequency range: 50 Hz - 20 kHz
DESCRIPTION

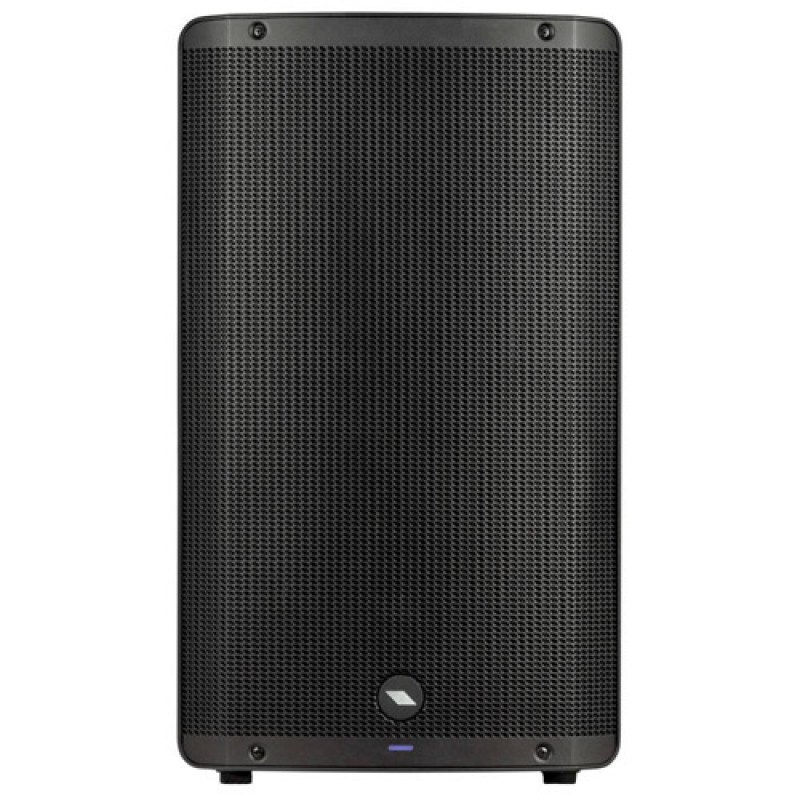

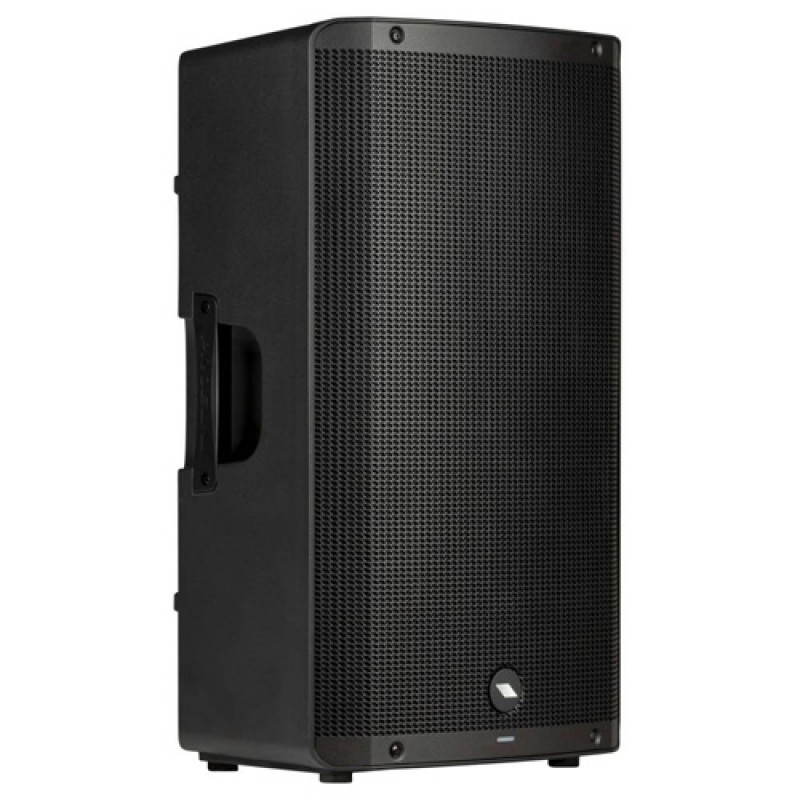

DIVA12A and DIVA15A are digitally processed active loudspeaker systems featuring multiple inputs and a versatile BLUETOOTH connectivity.
Hosted in lightweight yet ultra-durable polypropylene cabinets with ergonomic handles, they combine selected transducers driven with a powerful 1000W CLASS-D amplifier with SMPS, featuring high headroom and an accurate dynamic control for the maximum undistorted output power.
The sophisticated pre-amp section includes an advanced processing with high-performance DSP engine and linear phase FIR filters, for a very smooth response and high-definition sound.
An intuitive user’s interface with LCD color display and single-knob control is available for a quick selection and display of the 5 available EQ presets (MUSIC, LIVE, DJ, MONITOR, SPEECH), allowing the speakers to be perfectly adapted to any kind of application.

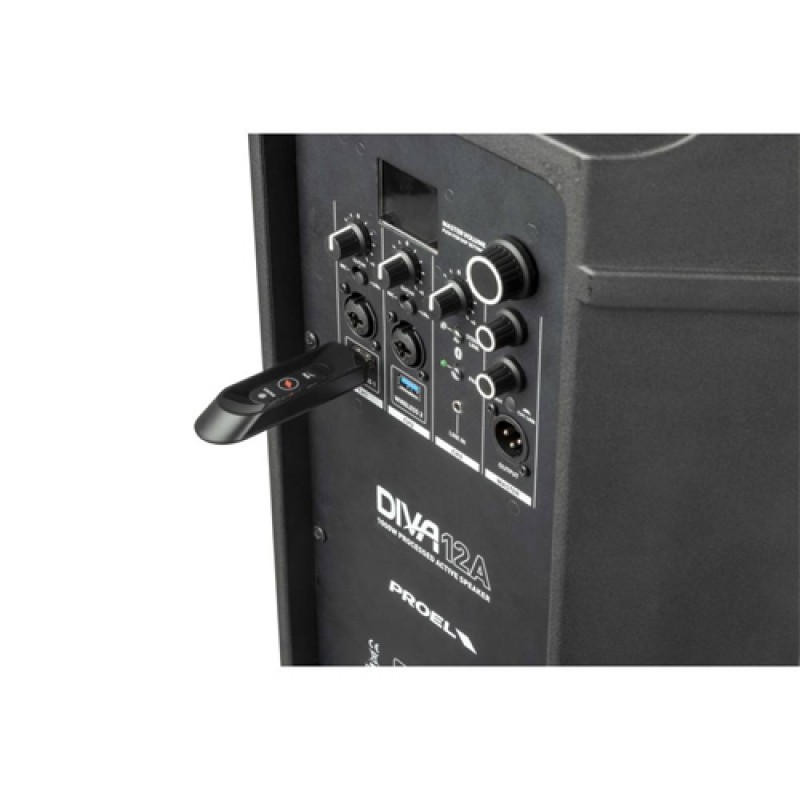

Thanks to the built-in 3-channel mixer with MIC/GUITAR/LINE input selection, HIGH and LOW EQ controls and two WIRELESS USB inputs for the use of PROEL U24 microphone systems, the DIVA12A and DIVA15A can be used in a variety of applications also without external equipment.
The BLUETOOTH interface allows to reproduce audio in mono streaming with a single speaker or in stereo streaming with two speakers and the STEREO LINK (TWS) function.
• 2-way active processed loudspeaker system

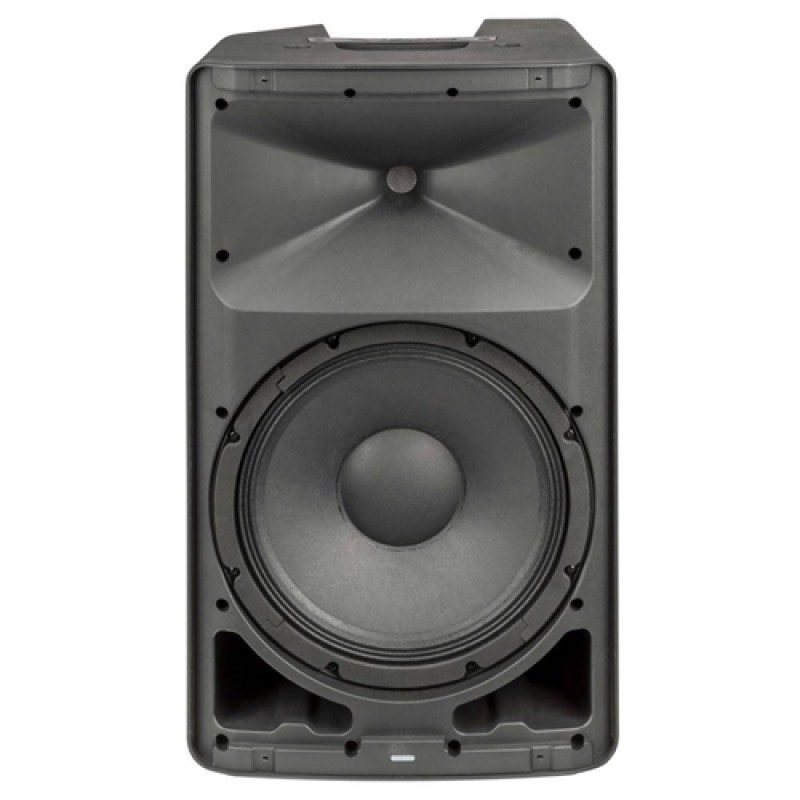

• 1” high-definition compression driver with 1.35” VC and titanium diaphragm
• Wide-coverage 90° x 60° constant directivity horn
• 12” long-excursion woofer with 2” voice coil
• High-efficiency 1000 W peak Class D power amplifier with SMPS
• Built-in 3-channel mixer with MIC/LINE inputs and HIGH & LOW EQ controls
• High-definition DSP with 24-bit converters and FIR filters
• 5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)
• BLUETOOTH audio interface with STEREO LINK
• Color LCD display for the DSP editing
• SPL MAX: 127 dB
• Frequency response: 50 Hz - 20 kHz
• Lightweight, compact and ultra-durable PP cabinet
• 2 ergonomic handles for effortless transportation

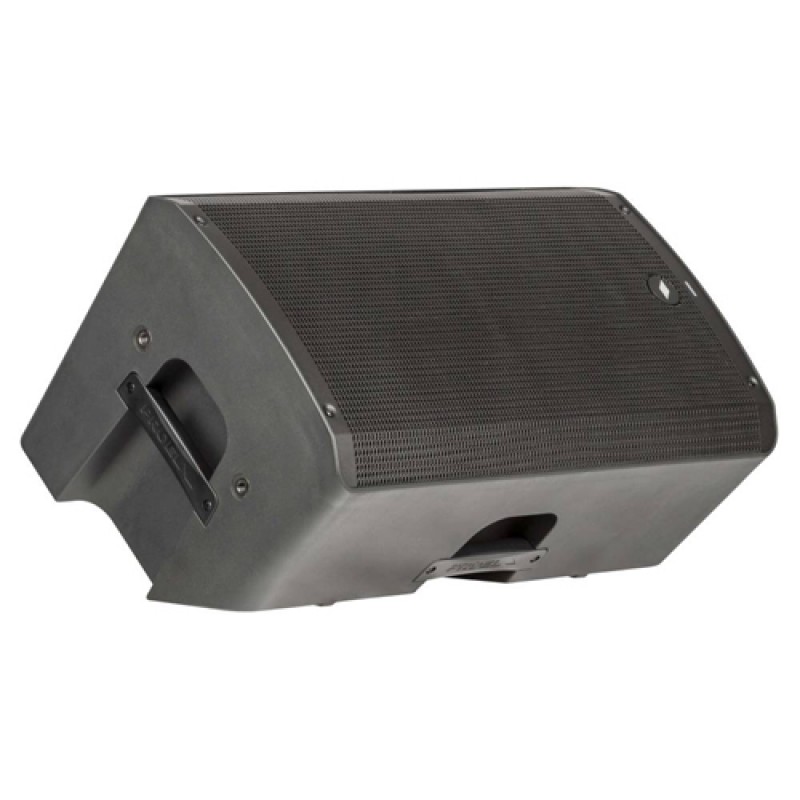

• Slanted shape for the use as a stage monitor
• Four M10 flying points
TECHNICAL SPECS
- System type : 2-way vented enclosure
- High Frequency Device : 1’’ compression driver with 1.35" voice coil and titanium diaphragm
- Low Frequency Device : 12" woofer with 2" VC
- Angular Coverage : 90° H x 60° V
- Total Peak Power : 1000 W
- HF Amplifier Continuous Power : 100 W Class AB
- LF Amplifier Continuous Power : 400 W Class D
- Power Supply : SMPS
- System Processing : DSP
- Frequency Response : 50 Hz - 20 kHz
- Max SPL : 127 dB

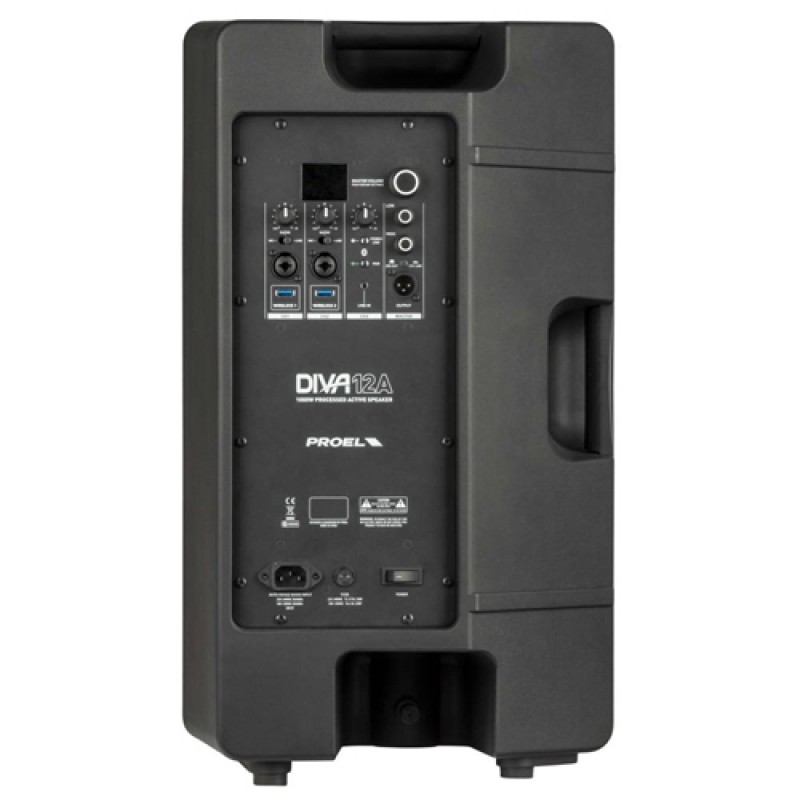

- Inputs : 2 x MIC/LINE (COMBO), 1 X STEREO LINE (MINIJACK), 2 x USB WIRELESS
- Outputs : 1 x selectable MIX OUT / CH1 LINK (M-XLR)
- Controls : CHANNEL LEVEL, INPUT SELECTOR, HIGH & LOW EQ, ROTARY PUSH ENCODER, COLOR LCD
- Bluetooth : Version 5.0, Audio Streaming, STEREO LINK (TWS)
- Power Supply : 100-120 V~ or 220-240 V~ at 50/60 Hz with self-switch
- Rated Consumption* : 300 W
- Floor Monitor Angle : 45°
- Flying System : 4 x M10 - top/bottom
- Cabinet Material : Polypropylene
- Handles : 1 x top, 1 x side
- Mounting Pole : 1 x bottom
- Dimensions (W x H x D) : 364 x 617 x 346 mm
- Weight : 16.0 kg (35.3 lb)
