Martin ELP-CL
- Rp.0
- Brands MARTIN Professional
- Product Code: Martin ELP-CL
- Availability: In Stock

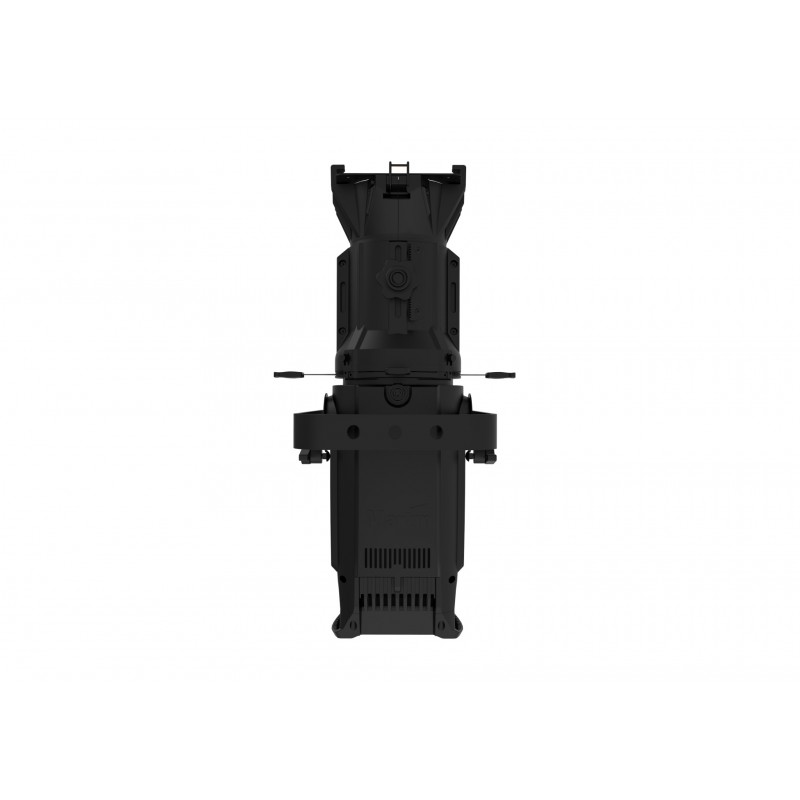

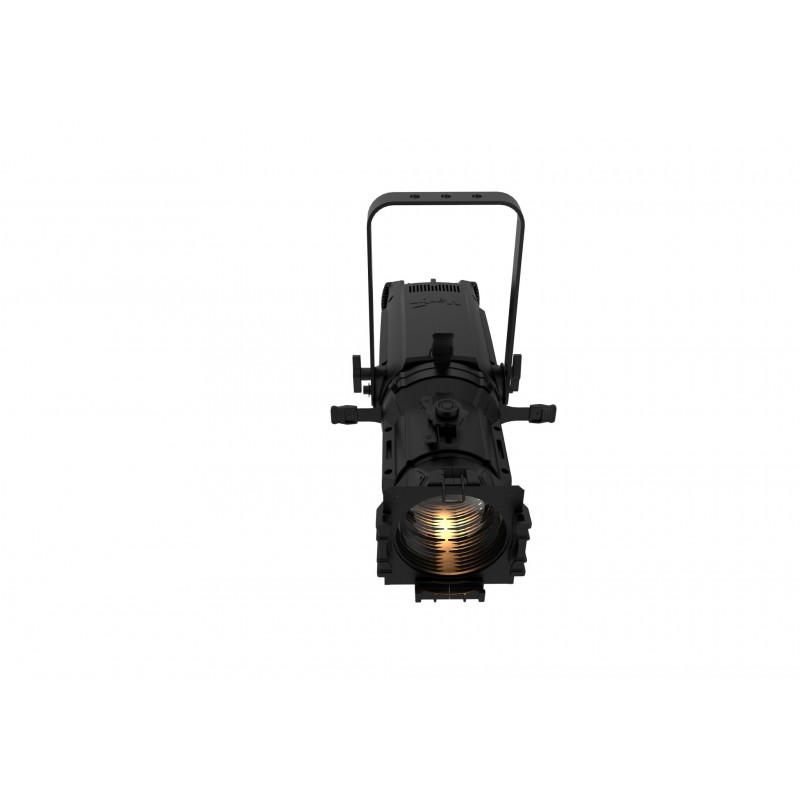

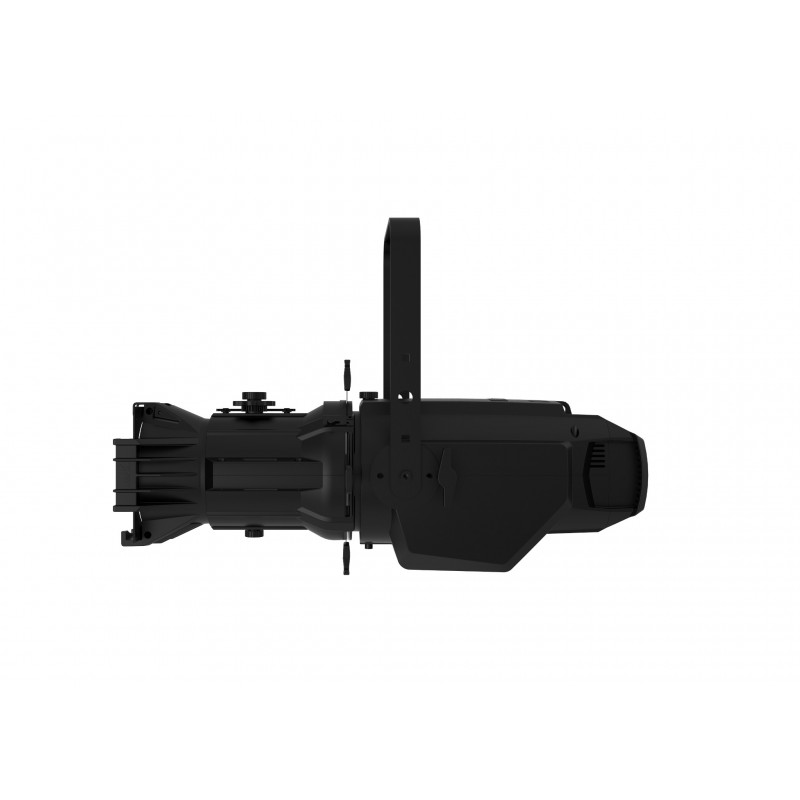

Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-..
Tags: MARTIN Professional, ELLIPSOIDAL, STAGE THEATER LIGHTING, ELP, LIGHTING SYSTEM
Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.
Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP CL the leading Color LED ellipsoidal fixture in its class.
Features:
- Impressive light output rating of 6,900 lumens (in High Output mode).
- Superior CRI rating of 90 (in High Quality mode).
- Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
- Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators
Tech Specs:
Gobo size: B 94mm OD, 69 mm ID
CRI: High Quality mode: CRI 90, 6000K @ 5600 lumens High Output mode: CRI 85, 5500K @ 6900 lumens
Connections: AC power in/thru: Neutrik True1 PowerCon DMX & RDM data in/thru: 5-pin XLR
Color Mixing: RGBAL, 26 color presets
Strobe & pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Electronic dimming: Four dimming curve options
Fast Focus: Instantly brings the fixture to full output for 60 second s by holding the MENU button for 5 seconds
In the box: ELP CL Color LED Ellipsoidal Light Fixture Body. 6.25” Gel Frame Power Cable 1.5 m Mounting Bracket
Ordering Information
Martin ELP CL (body only)
P/N: 9045107780
EAN: 5706681005178
Unit dimensions (L x W x H): 638 x 259 x 254 mm (25.1 x 10.1 x 10.0 in.)
Packaged dimensions (L x W x H): 630 x 330 x 290 mm (24.8 x 13.0 x 11.4 in.)
Weight, boxed/unboxed: 10/7.7 kg (22/16.9 lb.)
ELP 19° Lens Tube
P/N: 9045107782
Packaged dimensions (L x W x H): 300 x 220 x 220 mm (11.8 x 8.6 x 8.6 in.)
Weight, boxed/unboxed: 3/2.5 kg (6.6/5.5 lb.)
ELP 26° Lens Tube
P/N: 9045107783
Packaged dimensions (L x W x H): 300 x 220 x 220 mm (11.8 x 8.6 x 8.6 in.)
Weight, boxed/unboxed: 3/2.5 kg (6.6/5.5 lb.)
ELP 36° Lens Tube
P/N: 9045107784
Packaged dimensions (L x W x H): 300 x 220 x 220 mm (11.8 x 8.6 x 8.6 in.)
Weight, boxed/unboxed: 3/2.5 kg (6.6/5.5 lb.)
ELP 50° Lens Tube
P/N: 9045107785
Packaged dimensions (L x W x H): 300 x 220 x 220 mm (11.8 x 8.6 x 8.6 in.)
Weight, boxed/unboxed: 3/2.5 kg (6.6/5.5 lb.)
