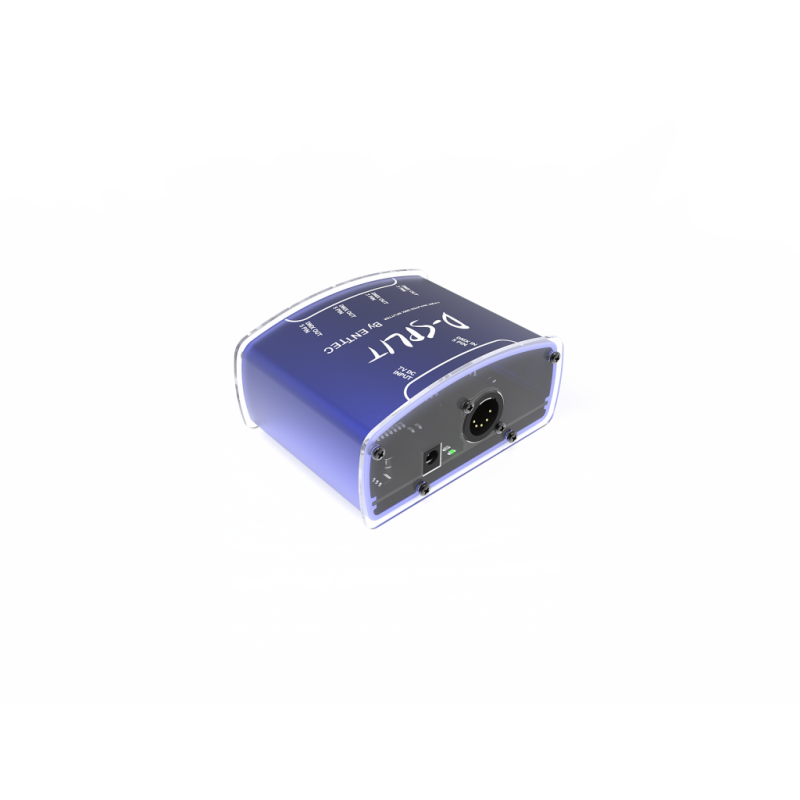

ENTTEC D-Split
- Rp.0
- Brands ENTTEC
- Product Code: ENTTEC D-Split
- Availability: In Stock
D-Split, greater flexibility & more efficiency. DMX daisy train out of control? D-Split is here it make life easier. An optical isolator and splitter for DMX512, D-Split offers four outputs, each of which can be used to create a new chain.Features:Small yet powerfulThe small, light and portable D-Split – offers a great solution to extend your DMX chain, without sacrificing the quality.ANSI E1...
Tags: ENTTEC, CONTROLLER & DIMMERS, SPLITTERS, LIGHTING SYSTEMS
D-Split, greater flexibility & more efficiency. DMX daisy train out of control? D-Split is here it make life easier. An optical isolator and splitter for DMX512, D-Split offers four outputs, each of which can be used to create a new chain.
Features:
Small yet powerful
The small, light and portable D-Split – offers a great solution to extend your DMX chain, without sacrificing the quality.
ANSI E1.11 – USITT DMX512-A compatible. One unit allows control up to 512 channels of DMX throughout the chain.
Protect your Equipment
1 input, 4 outputs, all optically isolated. Protection against up to 1000V of stray voltage. Simply connect your fixtures and control and let D-Split take care of the rest.
1000V isolation between input and output, and between any individual output receptacles. This protects your console from surges on DMX line, and also keeps any stray voltage from crossing to other DMX chains.
Monitor the activity
LED indicators show Power and DMX output. The green led indicates correct operation.

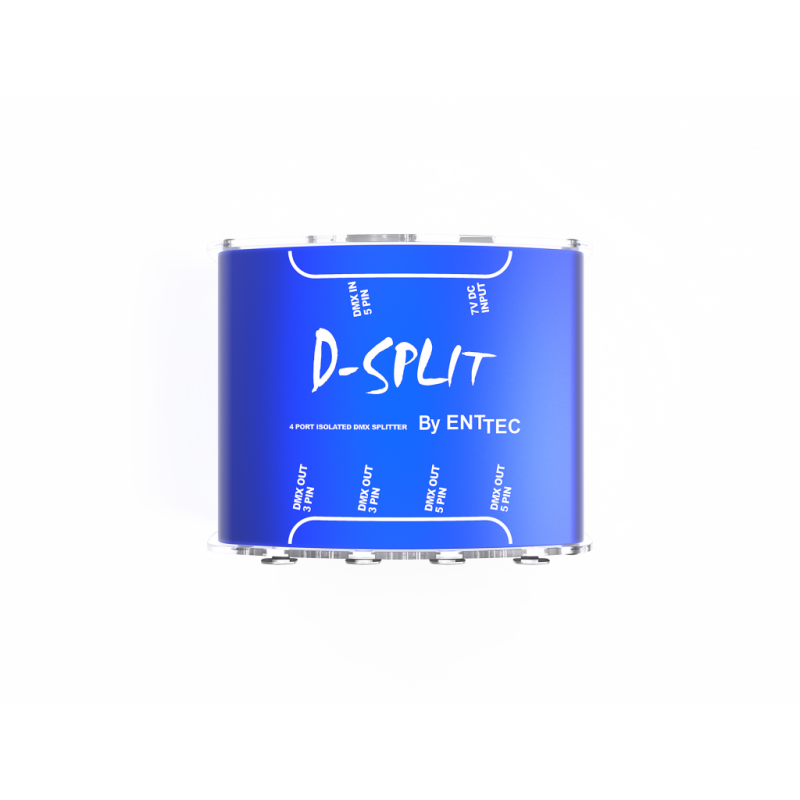

Input & Ouptuts
1 DMX 5 pin for DMX Input. And 2x 5 pin plus, 2x 3 pin DMX outputs for greater flexibility.

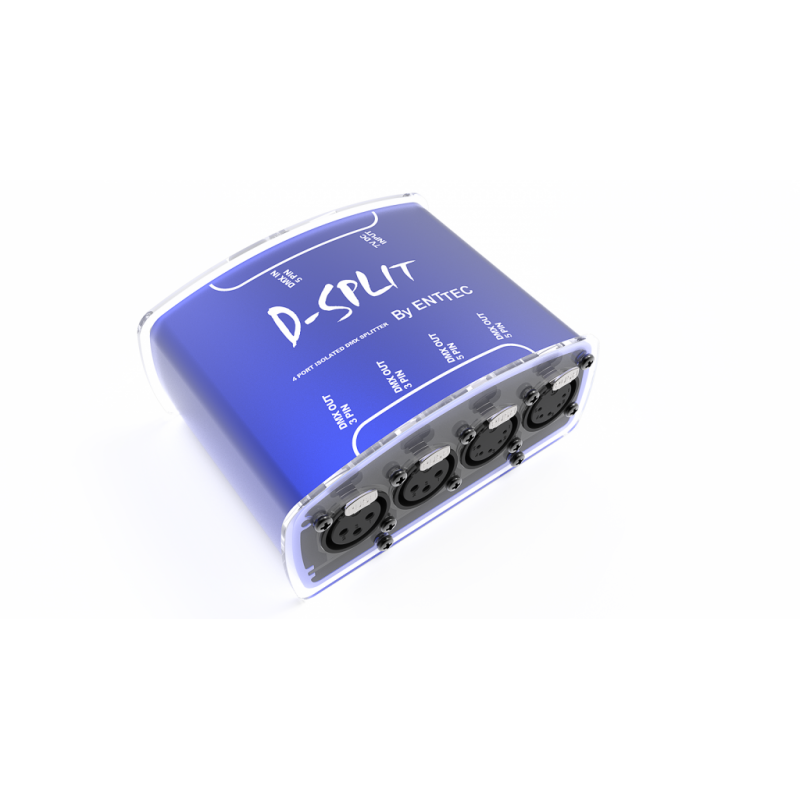

DMX Output–5-Pin XLR and 3-Pin XLR. All four may be used simultaneously, or in any combination.
Connect and Extend
Instead of having to make them all fit within a single daisy chain, each of the four outputs from the D-SPLIT can be the start of its own chain, and multiple D-SPLITs can be linked together if needed.
Dimensions (L x W x H) : 89x114x52 mm
Weight : 0.3 kg
