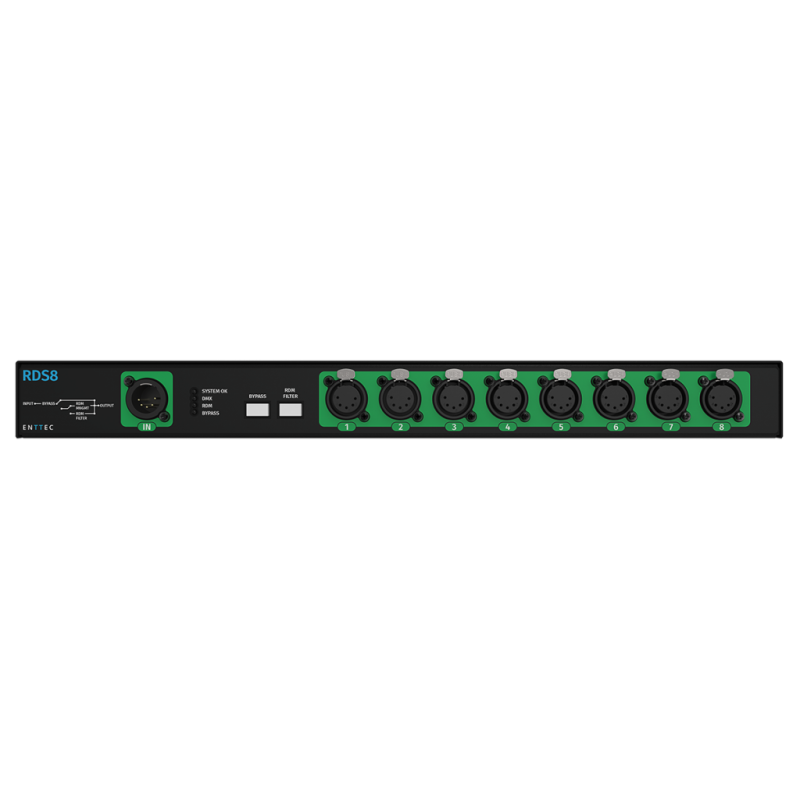

ENTTEC RDS8
- Rp.0
- Brands ENTTEC
- Product Code: ENTTEC RDS8
- Availability: In Stock
RDS8, realise the full potential of your DMX network. An 8-port, fully-isolated splitter that is totally DMX/RDM compatible, allowing you to realise the potential of any DMX network while retaining the full ability for RDM devices to talk back to a controller.Features:Allow DMX and RDMNormal mode: Splitter actively repeats RDM traffic bidirectionally while level information goes from controller to..
Tags: ENTTEC, CONTROLLER & DIMMERS, SPLITTERS, LIGHTING SYSTEMS
RDS8, realise the full potential of your DMX network. An 8-port, fully-isolated splitter that is totally DMX/RDM compatible, allowing you to realise the potential of any DMX network while retaining the full ability for RDM devices to talk back to a controller.
Features:
Allow DMX and RDM
Normal mode: Splitter actively repeats RDM traffic bidirectionally while level information goes from controller to DMX devices as usual.
Filter RDM
Filter Mode: Single button-press allows all RDM traffic to be filtered out, for legacy devices which might flicker if they saw the messages on the line.
Bypass mode
Bypass Mode: Another button bypasses intelligent RDM functionality completely to work as a traditional DMX splitter would. Also has 1000V isolation between input and output, and between any individual output receptacles. This protects your console from surges on the DMX line, and also keeps any stray voltage from crossing to other DMX chains.
Input & ouptuts
1 DMX 5-pin for DMX Input. And 8 x 5-pin DMX outputs for greater flexibility. Fully compliant with ESTA and USITT standards for DMX512A with RDM and RDM Standard ANSI E1.37-1.
Connect and extend
Instead of having to make them all fit within a single daisy chain, each of the four outputs from the RDS8 can be the start of its own chain, and multiple RDS8 can be linked together if needed. Featuring an internal auto-ranging power supply, the RDS8 is also 19-inch rack mountable with the included mounting ears.
Dimensions (L x W x H) : 432x115x44.45 mm
Weight : 1.8 kg
