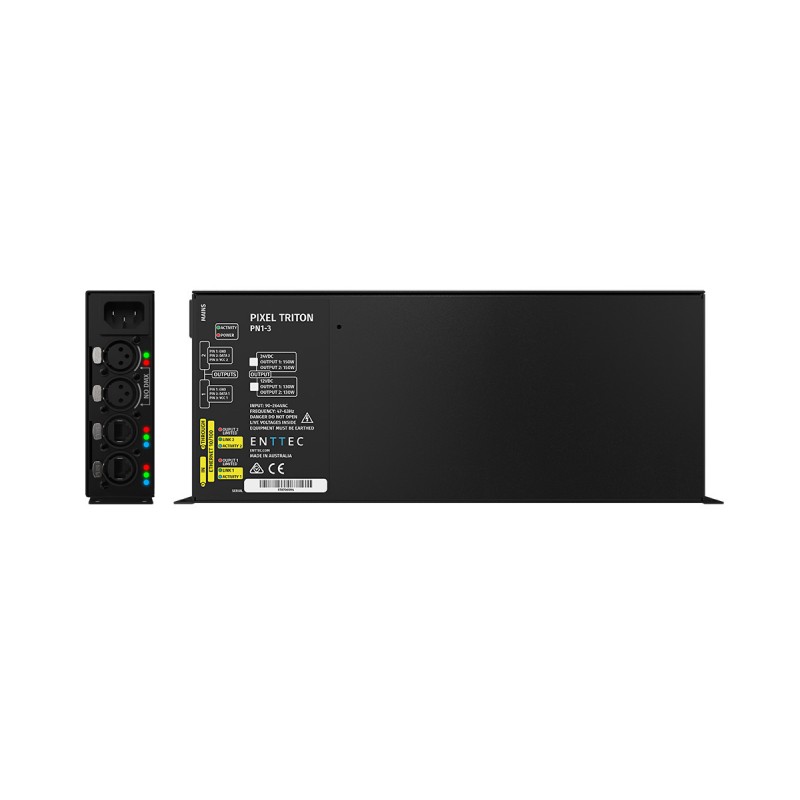

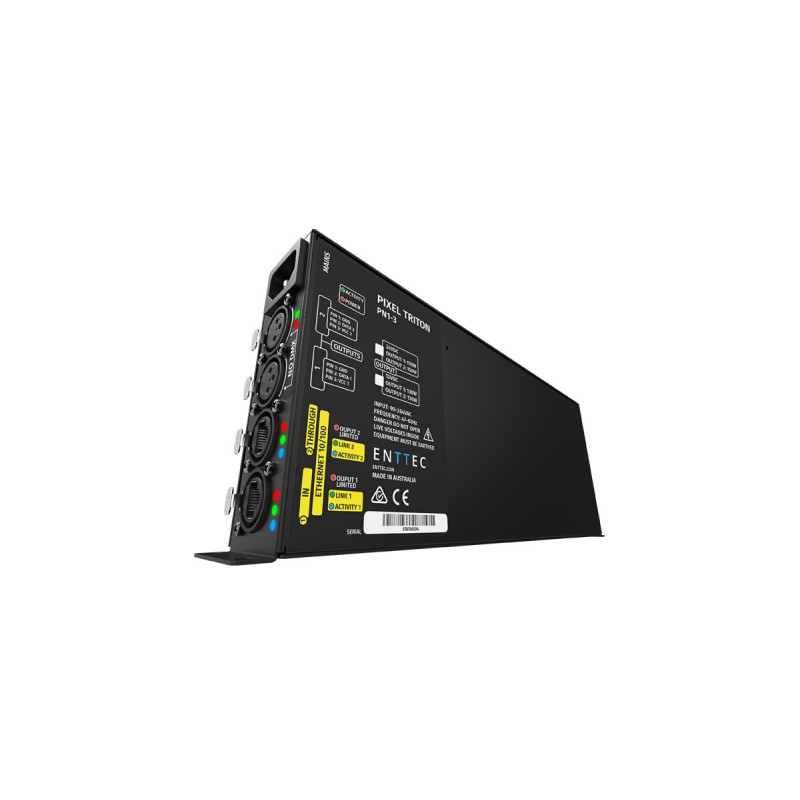

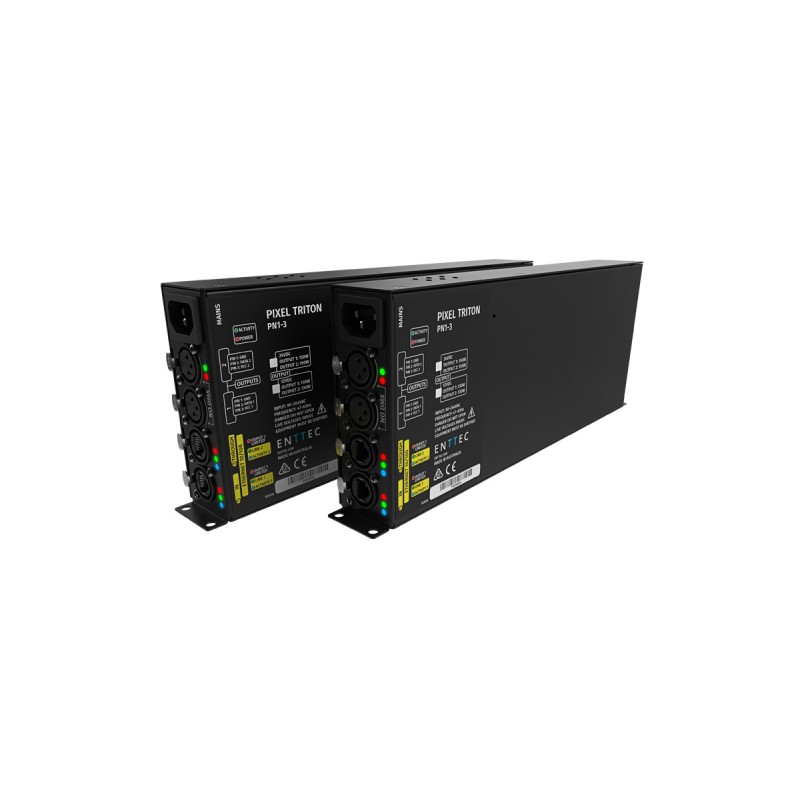

ENTTEC Pixel Triton
- Rp.0
- Brands ENTTEC
- Product Code: ENTTEC Pixel Triton
- Availability: In Stock
Pixel Triton, outputs up to 300W of power. The Pixel Triton is our new Ethernet pixel driver, which outputs up to 300W of power. Perfect for those large-scale touring projects, the Pixel Triton also supports up to 8 Universes of DMX data.With 2,048 DMX channels per output, you get a total of 4,096 DMX channel at your disposal from the Pixel Triton, allowing you to drive up to 1,360 individual RGB ..
Tags: ENTTEC, CONTROLLER & DIMMERS, ETHERNET, LIGHTING SYSTEMS
Pixel Triton, outputs up to 300W of power. The Pixel Triton is our new Ethernet pixel driver, which outputs up to 300W of power. Perfect for those large-scale touring projects, the Pixel Triton also supports up to 8 Universes of DMX data.
With 2,048 DMX channels per output, you get a total of 4,096 DMX channel at your disposal from the Pixel Triton, allowing you to drive up to 1,360 individual RGB pixels. Still not enough? Then daisy chain your Tritons with RJ45 Ethernet connectors to extend your set-up.
The Pixel Triton comes in two voltage options – 12V (outputting 260W) or 24V (the full 300W). Due to the smart design, your refresh rate won’t suffer if you’re using the Triton at its limits.
Using the simple web interface, you’ll be able to monitor your power consumption in real time – you’ll get a warning when you’re at 80% power consumption, meaning you’re always in control!
With compact dimensions of 335mm (L) 129mm (W) 43mm (H) and a weight of 2.4kg, this device will fit snugly into an ENTTEC 8-way rack unit (SKU:73530) for mounting into any standard touring case. It’s ready to go whenever you are!.
Features:
Connections
The Pixel Triton has 2 x 3-pin pixel outputs, 2 x EtherCON connectors (input/output) and 1 x IEC power connector.
Protocols
The Pixel Triton supports ArtNet 1/2/3 and sACN protocols.
Webpage configuration
Intuitive web-based configuration. Use your preferred browser, and you’ll be able to monitor your set-up in no time.
Supports a wide range of tape and dots
The following protocols are fully compatible with the Pixel Triton:
WS2811, WS2812, WS2812B, WS2813, SK6812, TM1804, TM1812, APA-104, 9PDOT (8 and 16-bit)
Dimensions (L x W x H) : 400x215x115 mm
Weight : 2.35 kg
