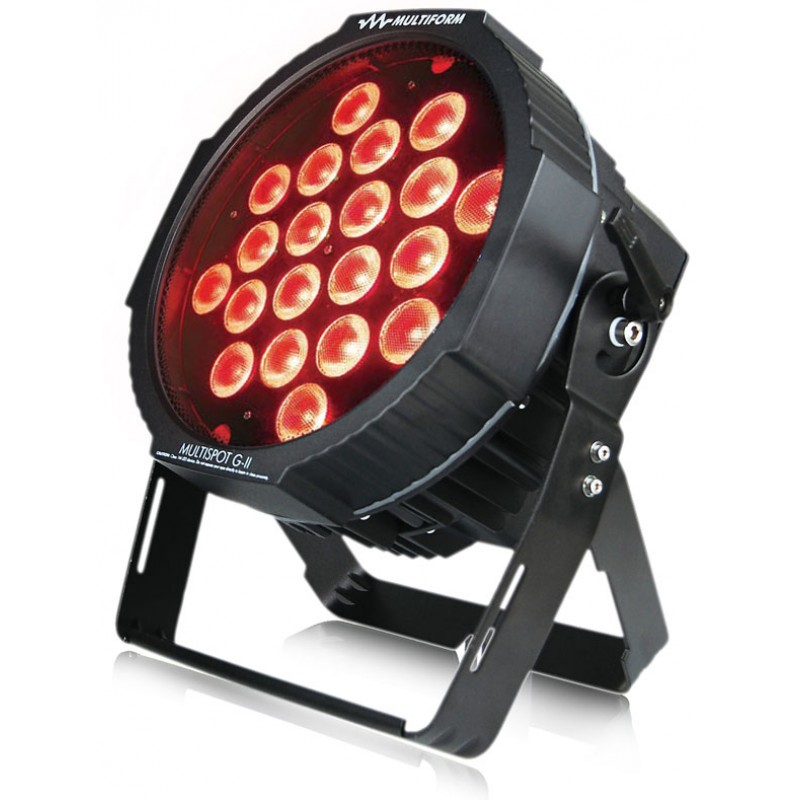

MULTIFORM MultiSpot GII HQ4020
- Rp.0
- Brands Multiform Lighting
- Product Code: MULTIFORM MultiSpot GII HQ4020
- Availability: In Stock
• The Multispot © GII-HQ4020 is a cosmetic upgrade to the Multispot © GII-HP4/20 and as such completes the family of the Multispot © GII models with a 4-in-1 RGBW model which is build around the latest generation of ceramic substrate LEDs, allowing much lower thermal resistance and hence increased LED lifetime despite its high performance.• The advanced HSL color mixing control and the ..
Tags: Multiform Lighting, Lighting Systems, Lighting Effects,
• The Multispot © GII-HQ4020 is a cosmetic upgrade to the Multispot ©
GII-HP4/20 and as such completes the family of the Multispot © GII
models with a 4-in-1 RGBW model which is build around the latest
generation of ceramic substrate LEDs, allowing much lower thermal
resistance and hence increased LED lifetime despite its high
performance.
• The advanced HSL color mixing control and the
user-friendly interface with large LCD display are a standard feature as
with all Multispot-GII models, and the user can easily convert the
Multispot © GII-HQ4020 between indoor (connectors) and outdoor version
(PG cable glands) to cater for any specific application.
FEATURES
• LED panel with 20pcs. of ultra-bright ceramic substrate 4-in-1 4.5W RGBW LEDs, total LED power 89W
• Total luminous output (all colors full level) 3650 lm with factory-calibrated white balance
• CDA™ (Current Drive Array) technology with high-efficiency switch-mode current regulators
• DISSIMAX™ heatsink geometry to control temperature for longer LED lifetime
• MCU-controlled LED panel temperature with automatic limiter
• ClearPass™ optical-grade PMMA lenses with 25 degrees dispersion angle
• User-exchangeable lens panel
• IP-65 Ingress protection rating (if outdoor conversion kit fitted)
• Switch mode power supply with wide-range input and PFC (EN61000-3-2 (Class C) compliant)
• PowerCon power in- and output connectors
• 3-pin XLR sockets for DMX in- and output with lock mechanism on female connector
• Convenient color-preset mode with 25 useful preset colors
• Useful preset mode with 23 internal color-fade presets
• Very flexible DMX control scheme, user-settable with 6 different DMX control modes, from
• RGB through RGBW and HSL, with either combined or separated dimmer/strobe channels.
• DMX slave mode to easily connect several units for control by the first unit in the chain
• Sound-to-light function with AGC (automatic gain control)
• Auto-shifting modulation frequency (PDM) for full TV-camera compliance
• User-adjustable white balance
• Maintenance information about duty hours, temperature and firmware version accessible
• Backlit amber 63-segment cleartext display with optional automatic backlight-off mode
• Diecast body with UV-resistant PE powder coating + 2xM10 mounts + M6 security lug
• Pressure compensation valve
• Multi-purpose dual aluminum bracket
• Outdoor conversion kit with 4xPG9 (2x for DMX data cable, 2x for AC supply connection) available
DATA
- Panels/Output: 1 panel, 3650 lm
- LEDs per panel: 20×4.5W RGBW 4-chip
- Arrangement: 20×0.85W red 20×1.2W green 20×1.2W blue 20×1.2W white
- Optics: Secondary, 25 degrees
- DMX Control: 3-6 Channels
- IP Rating: 20 (indoor)/65 (outdoor)
- AC requirement: 100-250 V~ 50-60Hz
- Max. Power: 95W
- Dimension 330.0 x327.0 x151.5mm WxHxD (with straight bracket)
- Weight: 7.1kg net
