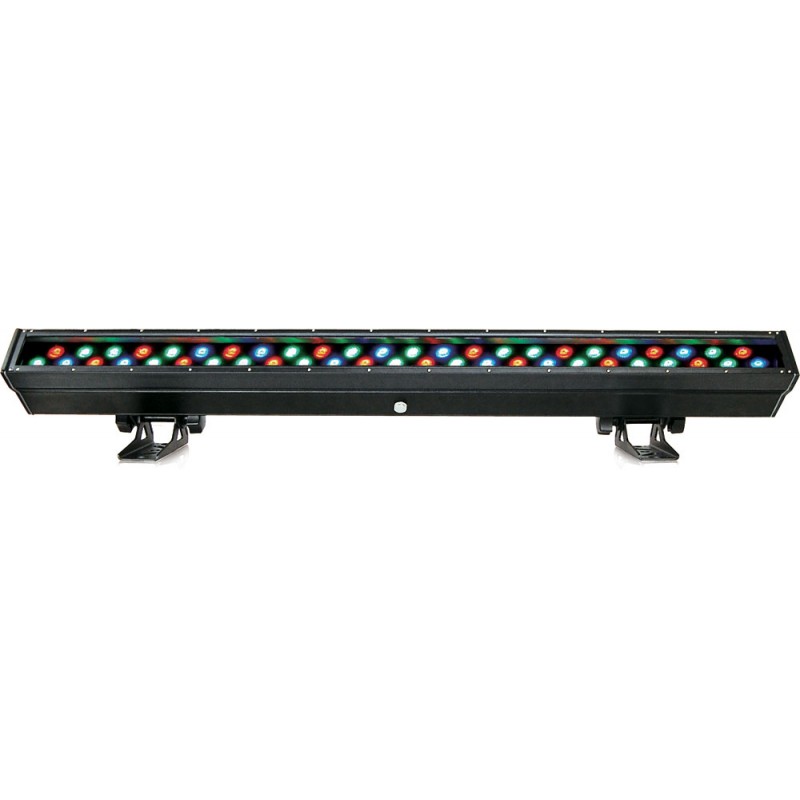

MULTIFORM MultiWall GII HS3049
- Rp.0
- Brands Multiform Lighting
- Product Code: MULTIFORM MultiWall GII HS3049
- Availability: In Stock
• The Multiwall © GII-HS3049 is a new addition to the Multiwall © range and offers a cost-efficient alternative to the Multiwall © GII-HS5062 when standard RGB color mixing is sufficient.• This makes the Multiwall © GII-HS3049 a default choice where a color-changing linear light source with superior output and long-term reliability is needed.• It features a new unique cooling techn..
Tags: Multiform Lighting, Lighting Systems, Lighting Effects,
• The Multiwall © GII-HS3049 is a new addition to the Multiwall ©
range and offers a cost-efficient alternative to the Multiwall ©
GII-HS5062 when standard RGB color mixing is sufficient.
• This makes
the Multiwall © GII-HS3049 a default choice where a color-changing
linear light source with superior output and long-term reliability is
needed.
• It features a new unique cooling technology, which keeps
the 49W-LED panel at appropriate working temperature, and hence promises
extended lifetime.
• The elliptical dispersion angle makes this unit
specifically suitable for wall washing, for which the user can easily
convert the unit between indoor (connectors) and outdoor version (PG
cable glands).
FEATURES
• LEDpanel with 49pcs. of ultra-bright 1W High-Power LEDs (16xRed, 21xGreen, 12xBlue)
• Total luminous output (all colors full level) 2300lm
• CDA™ (Current Drive Array) technology with high-efficiency switch-mode current regulators
• DISSIMAX™ heatsink with optimized geometry to control temperature for longer LED lifetime
• ClearPass™ optical-grade PMMA lenses with 25×75 degrees elliptical dispersion angle
• IP-65 Ingress protection rating (if outdoor conversion kit fitted)
• Switch mode power supply with wide-range input and PFC (EN61000-3-2 (Class C) compliant)
• PowCon power in- and output connectors
• 3-pin XLR sockets for DMX in- and output with lock mechanism on female connector
• Convenient color-preset mode with 19 useful preset colors
• Useful Preset Mode with 23 internal color fade presets
•
Flexible DMX control scheme, user-settable with 4 different DMX control
modes, RGB and HSL, with either combined or separated dimmer/strobe
channels.
• DMX slave mode to easily connect several units to be controlled by the first unit in the chain
• Sound-to-light function with AGC (automatic gain control)
• User-adjustable white balance
• Auto-shifting modulation frequency (PDM) for full TV-camera compliance
• Maintenance information about duty hours, temperature and firmware version accessible
• Backlit amber 63-segment cleartext display with optional automatic backlight-off mode
• Extruded aluminium body with UV-resistant PE powder coating and lower M10 nut slot
• Pressure compensation valve
• 2xMulti-purpose, variable-position aluminum brackets
• Outdoor conversion kit with 4xPG9 (2x for DMX cable, 2x for AC cable) available
• Unit can be disassembled for service and maintenance (removable tempered glass cover)
DATA
- Panels/Output: 1 panel, 2300 lm
- Arrangement: 12x1W red, 21x1W green,12x1W blue
- Optics: Secondary, 25×75 degrees
- DMX Control: 3-5 Channels
- IP Rating: 20 (indoor)/65 (outdoor)
- AC requirement: 100-250 V~ 50-60Hz
- Max. Power: 60W
- Dimension 1011.0 x 75.5 x 101.5mm WxHxD (without bracket)
- Weight: 6.2kg net
