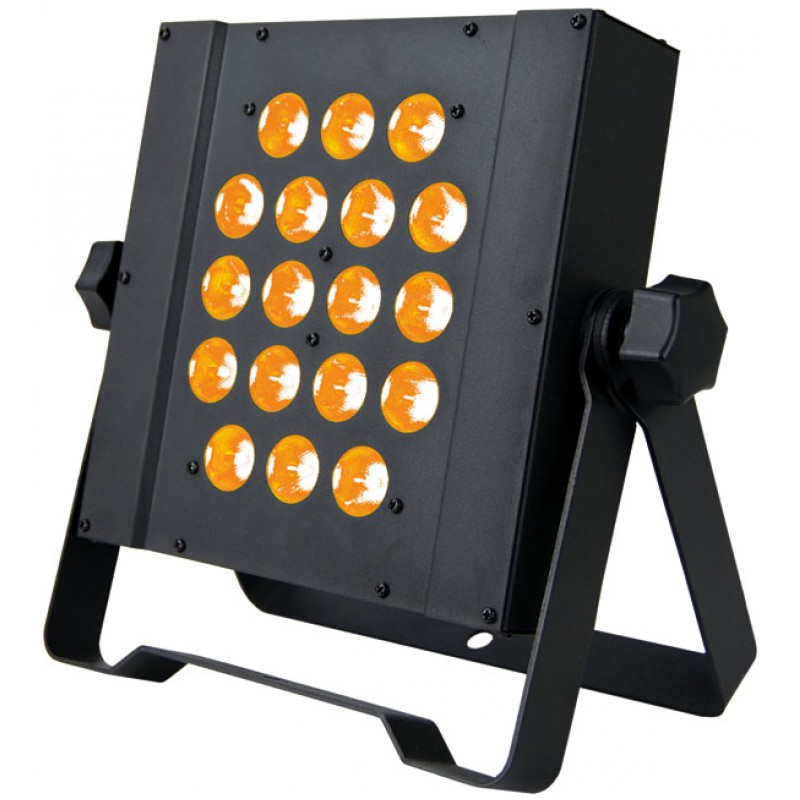

MULTIFORM VersoPlan HT3018
- Rp.0
- Brands Multiform Lighting
- Product Code: MULTIFORM VersoPlan HT3018
- Availability: In Stock
• The VersoPlan © HT3018 is a high power RGB color-mixing LED fixture, based on TriLED technology and a new approach to cooling.• Exposing the oversized rear-panel heatsink directly to a stream of convecting air allows this fixture to achieve outstanding LED lifetime while operating without any noise of a fan.• This results in a fixture of outstanding power density and reliability in..
Tags: Multiform Lighting, Lighting Systems, Lighting Effects,
• The VersoPlan © HT3018 is a high power RGB color-mixing LED fixture, based on TriLED technology and a new approach to cooling.
•
Exposing the oversized rear-panel heatsink directly to a stream of
convecting air allows this fixture to achieve outstanding LED lifetime
while operating without any noise of a fan.
• This results in a
fixture of outstanding power density and reliability in a very compact
case – perfect for installations with limited space or rental operations
where transport volume counts.
FEATURES
• 18x3W MulTriCell LEDs (18x1W-R, 18x1W-G, 18x1W-B)
• Precision PMMA collimator lenses, 25° dispersion angle
• Output 2550lm
• CDA™ Current Drive Array Technology for efficient constant LED current regulation
• 3 buttons + 3-digit LED display user interface
• 3 Operation modes: Static Color – Auto – DMX
• Sound-to-Light (S2L) for stand-alone operation
• Switching and fading presets for stand-alone operation
• Brightness and pattern speed adjustable in stand-alone operation
• DMX operation in 3- 4- and 5-Channel configuration
• IR sensor for optional IR remote control (not included)
• PDM modulation (camera compliant)
• Switch-mode power supply 100-250VAC
• Noise-free convection cooling (no fan)
• All-metal cabinet design
• Dual bracket
• Rear-side DMX connections and AC Input-Output IEC connections
• IP20 rated
DATA
- Panels/Output: 1 panel, 2550 lm
- LEDs per panel: 18x3W RGB MulTriCell
- Arrangement: 18xRed, 18xGreen, 18xBlue
- Optics: Secondary, 25 degrees
- DIM Modulation: PDM
- DMX Control: 3/4/5 Channels
- IP Rating: 20 (indoor)
- AC requirement: 100-250 V~ 50-60Hz
- Max. Power: 65W
- Dimension 210.0×210.0x 73.0mm WxHxD (without bracket)
- Weight: 3.1kg net
