PSSO CLA-228 MK2 LINE ARRAY Top
- Rp.0
- Brands Omnitronics
- Product Code: PSSO CLA-228 MK2 LINE ARRAY Top
- Availability: In Stock

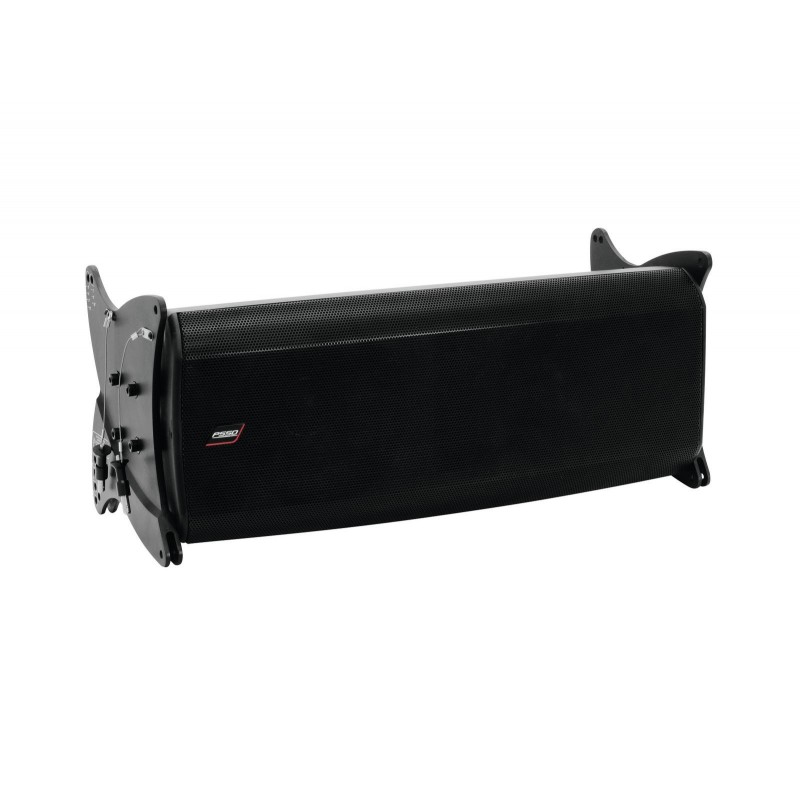

PSSO CLA-228 MK2 LINE ARRAY Top. Top speaker, 2 x 8" woofer, 1.73" driver, MF: 300 W RMS, HF: 60 W RMS.Features: - Improved MKII version with BEYMA drivers - Compact line array for permanent installations and touring purposes - Time saving 2-man installation directly from the transport case - Lightweight housing due to high-qu..
Tags: OMNITRONIC, SPEAKER SYSTEMS, SPEAKERS, LINE ARRAY, SOUND SYSTEMS
PSSO CLA-228 MK2 LINE ARRAY Top. Top speaker, 2 x 8" woofer, 1.73" driver, MF: 300 W RMS, HF: 60 W RMS.
Features:
- Improved MKII version with BEYMA drivers

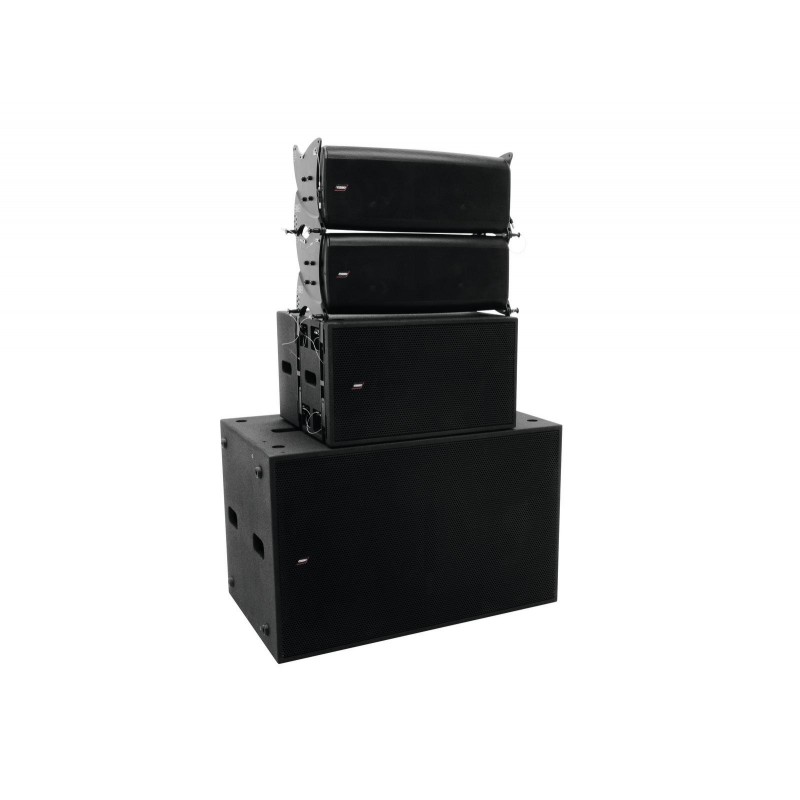

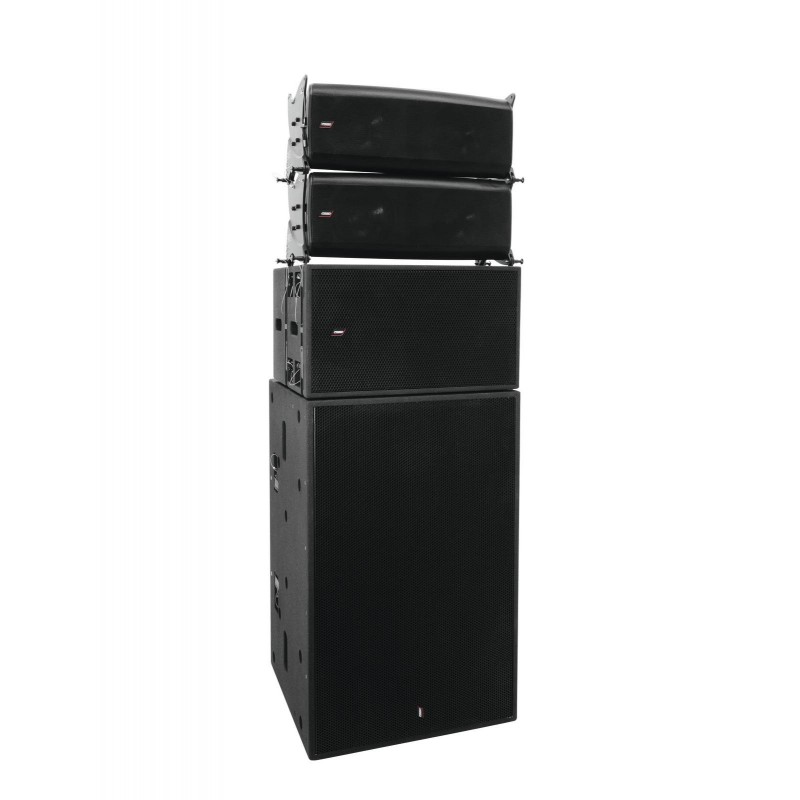

- Compact line array for permanent installations and touring purposes
- Time saving 2-man installation directly from the transport case
- Lightweight housing due to high-quality plastic
- Low weight of the whole construction and reduced demands for the flying points
- Elegant housing design for avoiding resonance and standing waves
- Two powerful 20 cm low/mid neodymium magnets (2 x 8")
- 4.4 cm neodymium driver (1.73") with titanium diaphragm
- Specially designed waveguide
- Maximum efficiency due to biamped control
- Wide horizontal dispersion angle of 100°

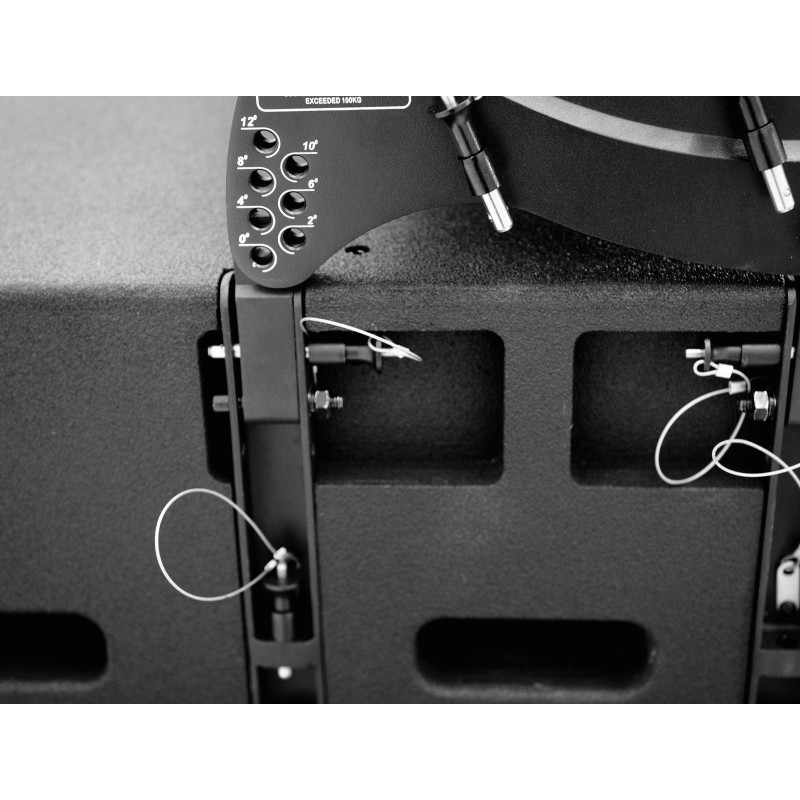

- Curving adjustable between 0° and 12°

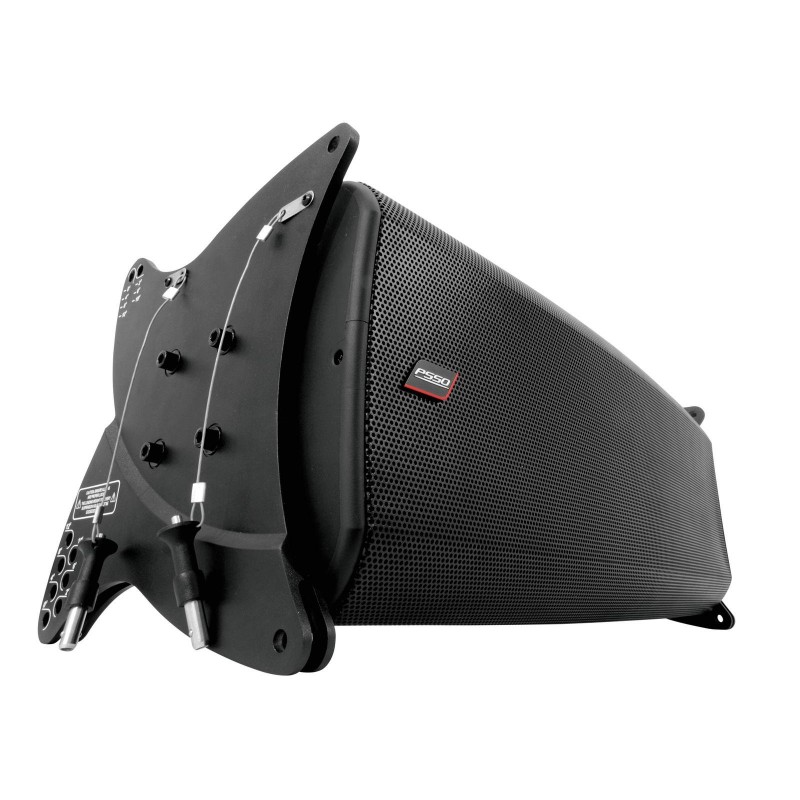

- Easy rigging with captive quick release pins
- Tight locking pins eliminating vibration noise
- Flying hardware regularly tested by an independent and accredited testing institute
- MF rated power: 300 W RMS
- HF rated power: 60 W RMS
- MF program power: 600 W
- HF program power: 120 W

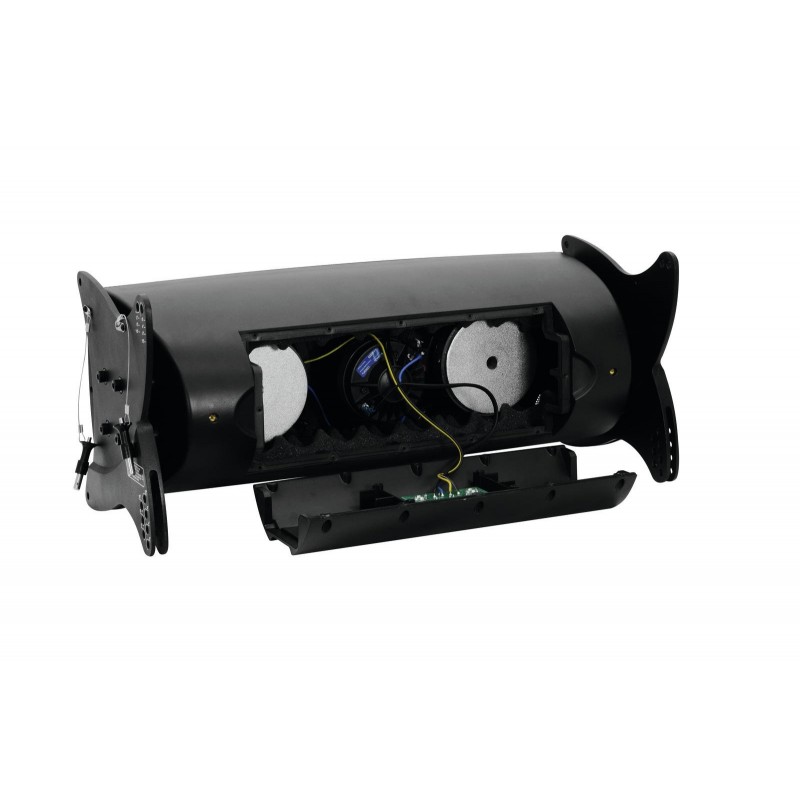

- Components: 2 x 20 cm woofer (2 x 8"), 4.4 cm driver (1.73")

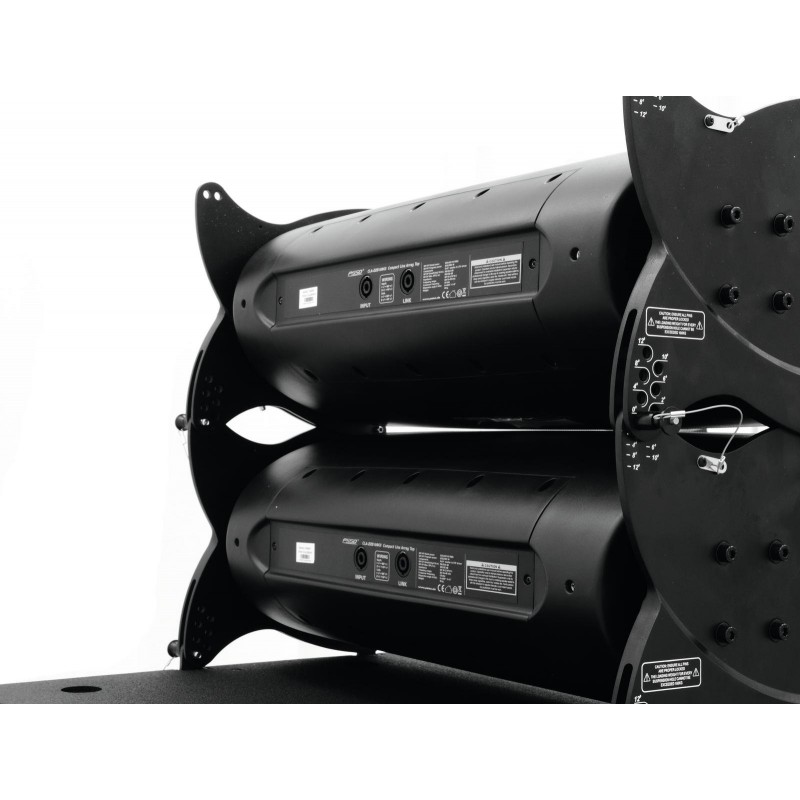

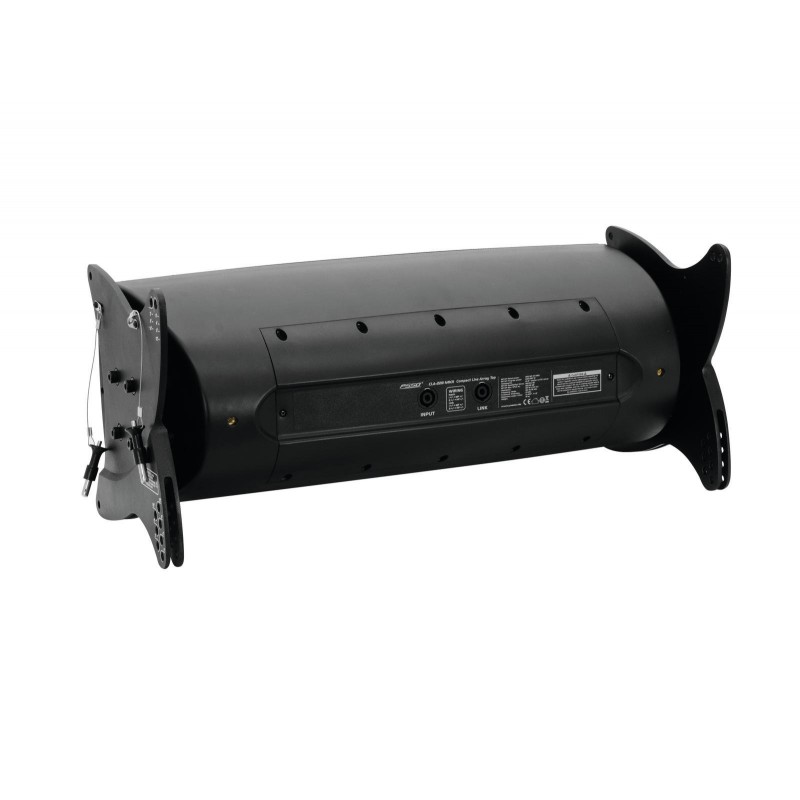

- Connection: 2 Speakon sockets (4-pin)
- MF sensitivity: 96 dB
- HF sensitivity: 104 dB
- MF maximum SPL: 123 dB
- HF maximum SPL: 124 dB
- Impedance: MF 16 ohms / HF 8 ohms
- Crossover frequency: 1.8 kHz
- Dispersion angle: H=100°, V=3°
- Frequency range: 68 - 20000 Hz
- Loudspeaker control (Impedanz): 4/8 Ohm Biamp
Dimensions (L x W x H): 285 x 670 x 285 mm
Weight: 19 kg
