PSSO CLA Basic System MK2 M complete
- Rp.0
- Brands Omnitronics
- Product Code: PSSO CLA Basic System MK2 M complete
- Availability: In Stock
PSSO CLA Basic System MK2 M complete.11040910 PSSO CLA-115 LINE ARRAY SubwooferPowerful bass, perfectly corresponding to the tops. The bolting inside provides additional reinforcement. The U-Turn-Rigging-System alleviates the installation. All you have to do is to simply turn down the connectors and secure them with quicklock pins.Set consisting of:4x 11040910: PSSO CLA-115 LINE ARRAY Subwoofer2x ..
Tags: OMNITRONIC, SPEAKER SYSTEMS, SPEAKERS, LINE ARRAY, SOUND SYSTEMS
PSSO CLA Basic System MK2 M complete.
11040910 PSSO CLA-115 LINE ARRAY Subwoofer
Powerful bass, perfectly corresponding to the tops. The bolting inside provides additional reinforcement. The U-Turn-Rigging-System alleviates the installation. All you have to do is to simply turn down the connectors and secure them with quicklock pins.

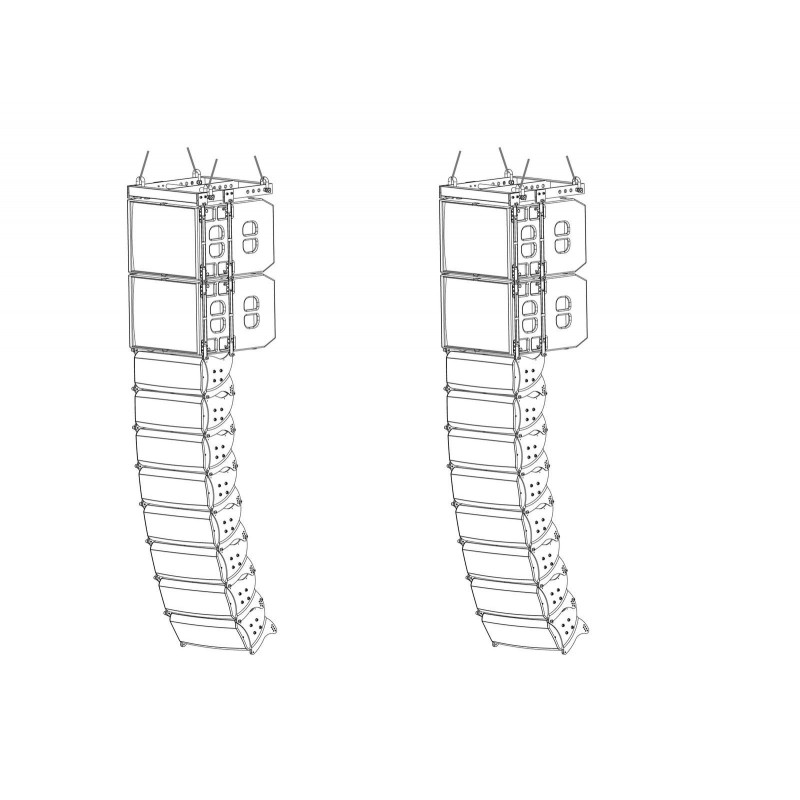

Set consisting of:
4x 11040910: PSSO CLA-115 LINE ARRAY Subwoofer
2x 11040950: PSSO Flying Bracket CLA-228/CLA-115
16x 11040901: PSSO CLA-228 MK2 LINE ARRAY Top

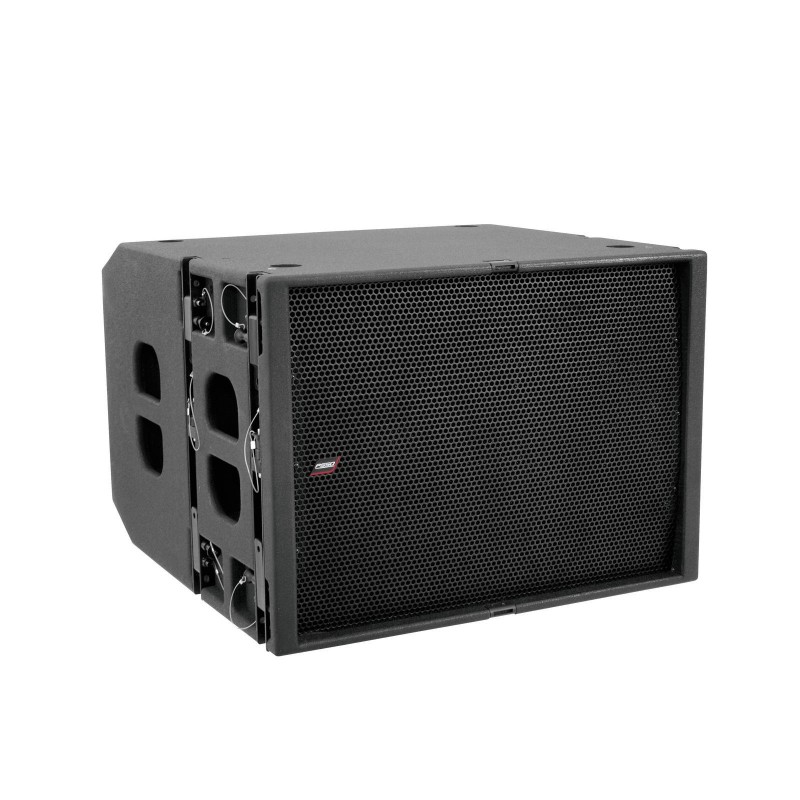

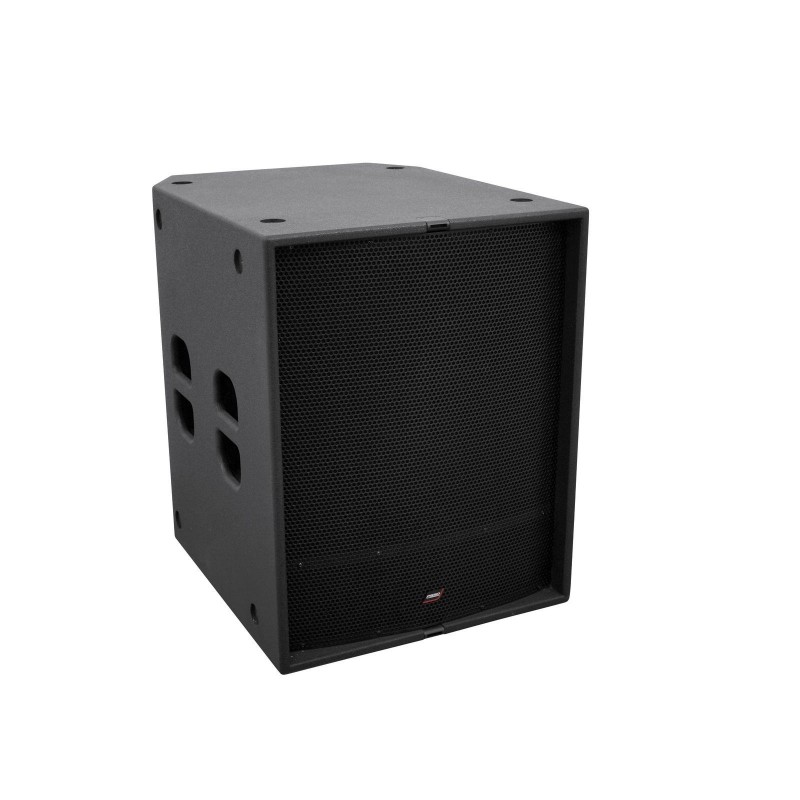

11040910 PSSO CLA-115 LINE ARRAY Subwoofer
Subwoofer, 15" woofer, 500 W RMS, 8 ohms, can be flown
* Compact line array for permanent installations and touring purposes
* Powerful bassreflex subwoofer
* 38 cm woofer (15") with 100 mm voice coil with aluminum chassis
* Housing made of several layer 15 mm birch plywood
* Extremely rugged surface finish
* No disturbing steel parts due to U-Turn Rigging System
* Easy rigging with captive quick release pins
* Tight locking pins eliminating vibration noise
* Flying hardware regularly tested by an independent and accredited testing institute
* Integrated locking-system for optional wheel boards
* 4 rubber feet with fitting sinkings on the top
* Transport aid: Wheelboard optional
* Components: 38 cm woofer (15")
* Connection: 2 Speaker sockets (4-pin)
* Sensitivity: 98 dB
* Maximum SPL: 125 dB
* Dimensions (H x W x D): 480 x 668 x 680 mm
* Weight: 50 kg
* Program power: 1000 W
* Rated power: 500 W RMS
* Size of woofer: (15") ca. 38 cm
* Number of bass-woofer: 1 Pc/Pcs
* Frequency range: 42 - 200 Hz
* Loudspeaker control (Impedanz): 8 Ohm

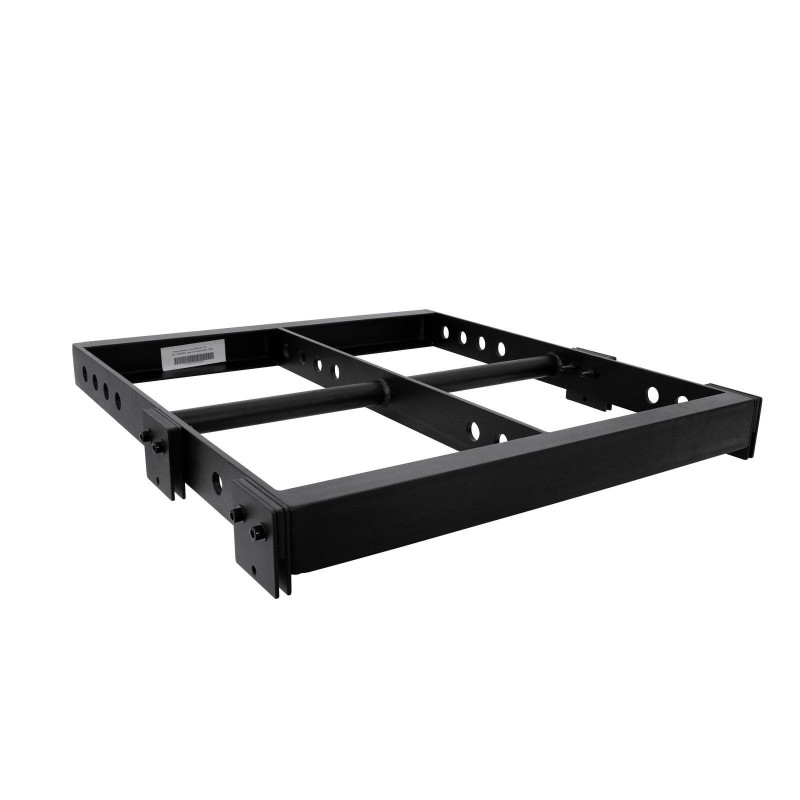

11040950 PSSO Flying Bracket CLA-228/CLA-115
Flying bracket for PSSO Line Array systems CLA-228 and CLA-115
* Flying hardware regularly tested by an independent and accredited testing institute
* Weight: 17 kg
* Max. load WLL (4fold): 800 kg
* Height: 6.2 cm
* Depth: 68 cm
* Width: 63.2 cm

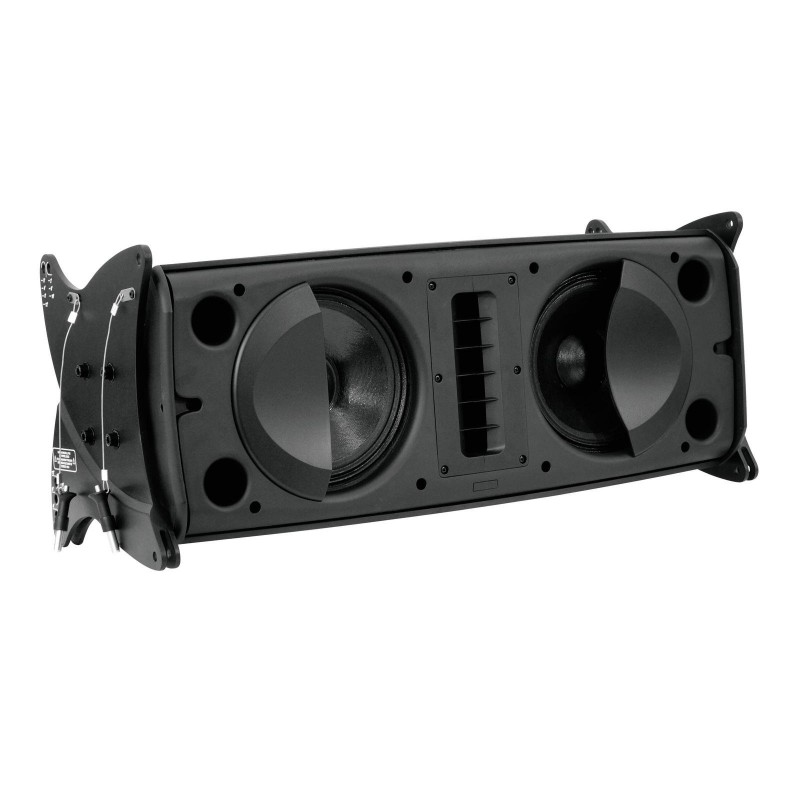

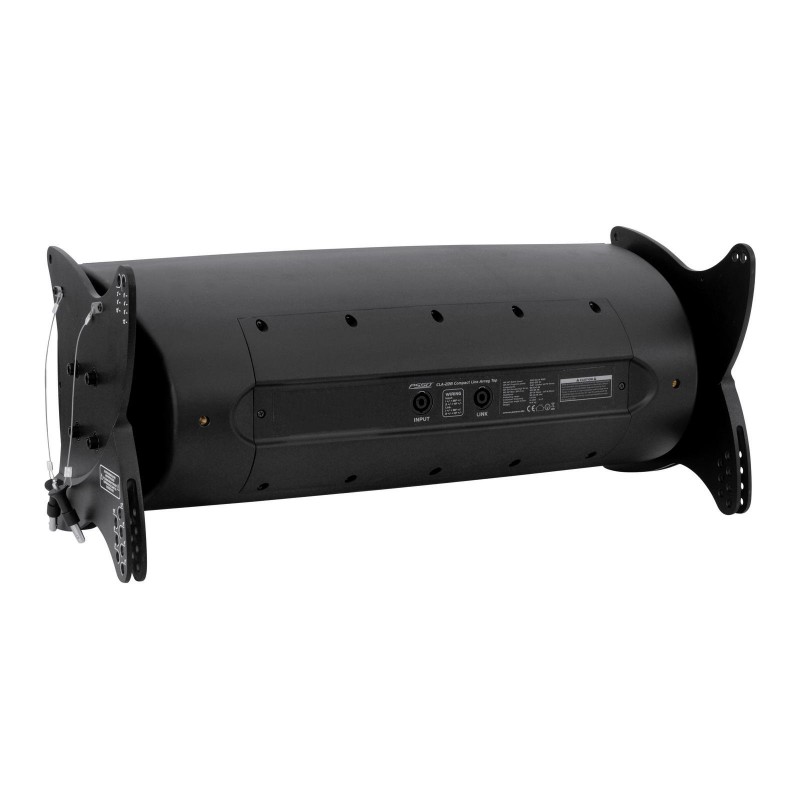

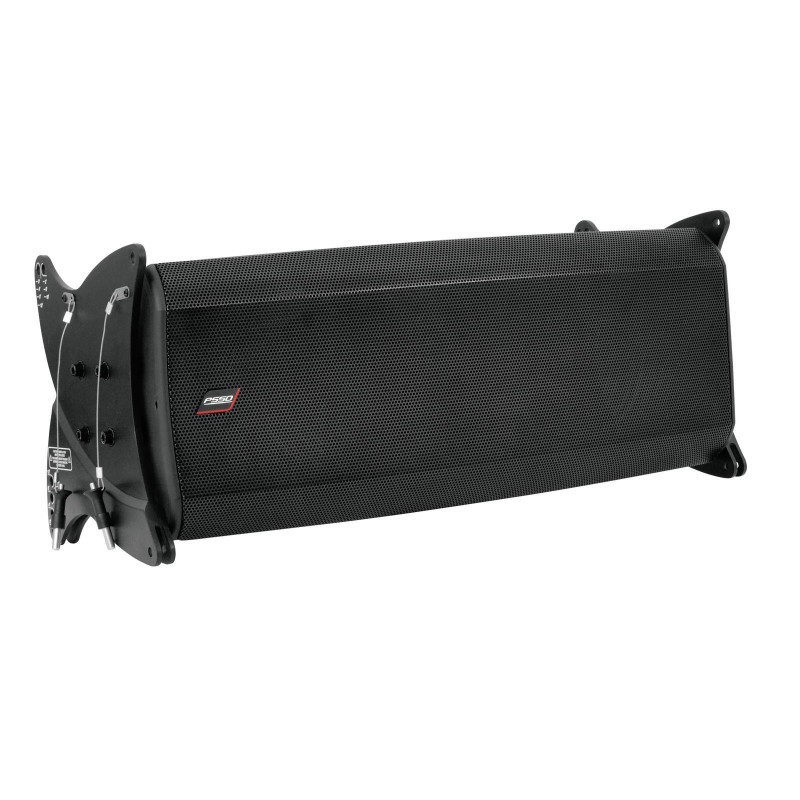

11040901 PSSO CLA-228 MK2 LINE ARRAY Top
Top speaker, 2 x 8" woofer, 1.73" driver, MF: 300 W RMS, HF: 60 W RMS
* Improved MKII version with BEYMA drivers
* Compact line array for permanent installations and touring purposes
* Time saving 2-man installation directly from the transport case
* Lightweight housing due to high-quality plastic
* Low weight of the whole construction and reduced demands for the flying points
* Elegant housing design for avoiding resonance and standing waves
* Two powerful 20 cm low/mid neodymium magnets (2 x 8")
* 4.4 cm neodymium driver (1.73") with titanium diaphragm
* Specially designed waveguide
* Maximum efficiency due to biamped control
* Wide horizontal dispersion angle of 100°
* Curving adjustable between 0° and 12°
* Easy rigging with captive quick release pins
* Tight locking pins eliminating vibration noise
* Flying hardware regularly tested by an independent and accredited testing institute
* MF rated power: 300 W RMS
* HF rated power: 60 W RMS
* MF program power: 600 W
* HF program power: 120 W
* Components: 2 x 20 cm woofer (2 x 8"), 4.4 cm driver (1.73")
* Connection: 2 Speakon sockets (4-pin)
* MF sensitivity: 96 dB
* HF sensitivity: 104 dB
* MF maximum SPL: 123 dB
* HF maximum SPL: 124 dB
* Impedance: MF 16 ohms / HF 8 ohms
* Crossover frequency: 1.8 kHz
* Dispersion angle: H=100°, V=3°
* Dimensions (H x W x D): 285 x 670 x 285 mm
* Weight: 19 kg
* Frequency range: 68 - 20000 Hz
* Loudspeaker control (Impedanz): 4/8 Ohm Biamp
