PSSO Amp Set MK2 for Line-Array S

10451684 PSSO DDA-1700 Amplifier

Stereo PA amplifiers with up to 3.5kW of power

The stereo PA amplifiers of the DDA series with integrated limiter have been specially designed for stage and the disco applications. The amplifiers may be used in stereo operation, parallel operation or in mono bridge operation. All models employ a Class D architecture. Thanks to their switch mode power supply unit, the weight of the amplifiers is considerably lower than that of amplifiers of comparable power equipped with a standard power supply unit which makes them particularly attractive for rental companies. The amplifiers and the speakers connected are protected through extensive protective circuits.

10451696 PSSO QCA-6400 4-Channel SMPS Amplifier

4-channel PA Amplifiers with Integrated SMPS

The 4-channel PA amplifiers of the QCA series offer ultra-high output power paired with a low weight and small overall height. The amplifiers use a patented second-generation Class I output circuitry which combines the high efficiency off Class D and the sound quality of Class A. Featuring a modern switch-mode power supply, the amplifiers provide up to 10 kW peak power and weigh less than 16 kg. This makes the series particularly attractive for mobile applications. The amplifiers can be used flexibly in stereo operation, parallel operation or in mono bridge operation. Extensive protective circuits will protect the amplifiers and the speakers connected.

Features :

Set consisting of:
1x 10451684: PSSO DDA-1700 Amplifier
1x 10451696: PSSO QCA-6400 4-Channel SMPS Amplifier
1x 10356362: PSSO DXO-26 PRO Digital Controller
1x 30100150: OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U
1x 30109190: ROADINGER Rack Profi KM 6U 55cm with wheels

10451684 PSSO DDA-1700 Amplifier

Stereo PA amplifier with SMPS, 2 x 850 W / 4 ohms

- Stereo PA amplifier with class D circuitry
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
- Limiter and speaker switch-on delay
- 3 operating modes can be selected (stereo, parallel or bridged)
- 2 calibrated level controls for precise level adjustment
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
- Highly efficient front-to-rear air routing
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs and screw terminals
- Rugged steel chassis with aluminum front panel
- Rack installation with 2 units
- Housing design: (19") 48.3 cm rack installation
- Height unit: 2 HE
- Power supply of device: Mains Input Socket (M) P-Con (Power-In) fehlt provided

10451696 PSSO QCA-6400 4-Channel SMPS Amplifier

PA amplifier with SMPS, 4 x 1600 W / 2 ohms, 4 x 1400 W / 4 ohms

- 4-channel PA amplifier with class I circuitry
- 4 x 1400 W/4 ohms
- Low weight and height due to integrated switch mode power supply
- Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
- Speaker switch-on delay
- 3 operating modes can be selected (stereo, parallel or bridged)
- 4 level controls for precise level adjustment
- Input sensitivity adjustable
- LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
- Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals
- Highly efficient front-to-rear air routing
- Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
- Speaker outputs via lockable Speaker plugs
- Rugged steel chassis with aluminum front panel
- Rack installation with 2 units
- Neutrik Speakon outputs
- Height unit: 2 HE
- Power supply of device: Fix fehlt
- Housing design: (19") 48.3 cm rack installation

10356362 PSSO DXO-26 PRO Digital Controller

Digital speaker management system with real-time network communication, 2 inputs and 6 outputs

- Digital network speaker management system with 64-bit processing
- Premium components ensure excellent sound-features
- Flexible routing configurations for all standard mono and stereo output operating modes
- 2 analog inputs and 1digital AES/EBU interface (XLR)
- 6 analog outputs (XLR)
- 10-band parametric EQ per input and output
- Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass
- Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
- The intelligent software for PC and Mac allows convenient control with a computer
- Full configuration and real-time network communication via the built-in Ethernet interface
- Up to 80 user presets storable in the device via software
- Control of all functions also possible via the controls at the front panel
- Alphanumeric LCD screen with 2 lines of 16 characters each
- Input sensitivity digitally adjustable
- Inputs and outputs with 4-digit VU meter
- Mute switch with LED indicator per output
- Up to 2000 ms signal delay adjustable for the inputs and outputs
- Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
- Switchable phase (180°)
- Lock function for protecting the program settings
- Rack installation, 1 U
- Windows XP, Vista, 7, 8 and Mac OS X 10.5.8 and better
- Control your speaker systems more flexible than ever with the DXO Control app
- DXO Control for iPad supports all functions of the PC software and is available for free from the app store
- PC connect: DXO Software via USB; DXO Software via fehlt Firmware can be updated
- DSP: Digital signal processor
- Height unit: 1 HE
- Housing design: (19") 48.3 cm rack installation
- Power supply of device: Mains Input Socket (M) fehlt provided

30100150 OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U

U-front panel in different sizes

- 1 mm steel, black, powder-coated
- Weight 465-1350 g (depending on the version)
- Height unit: 1 HE

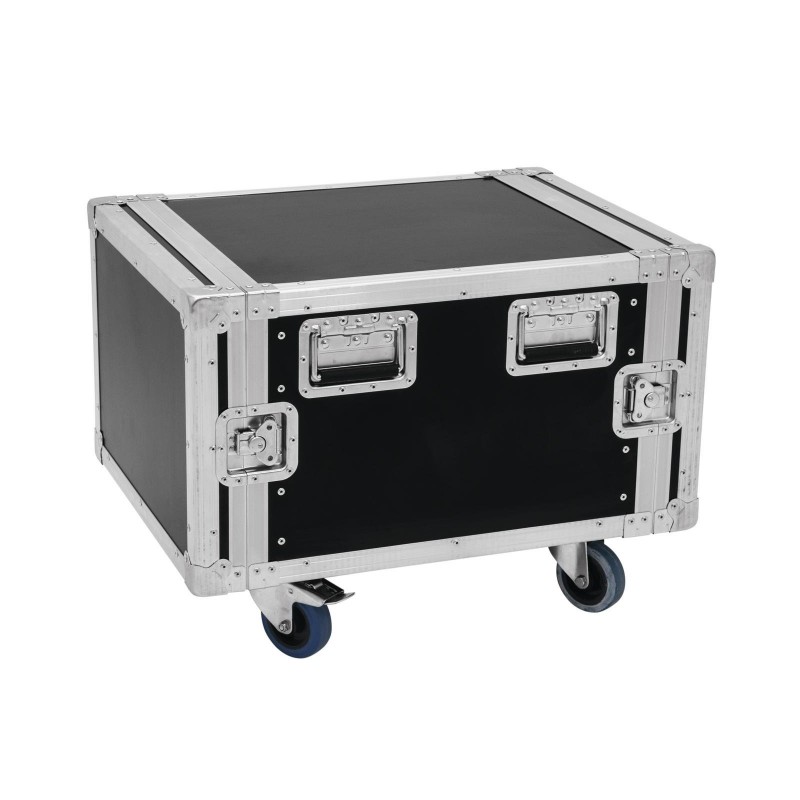

30109190 ROADINGER Rack Profi KM 6U 55cm with wheels

PRO flightcase for 483 mm units (19")

- Profile rails with mounting facility for 483 mm units (19"), e.g. light PA amplifiers, power packs, additional equipment
- Stomped profile rails for cage nuts
- 2 removable covers (double-door version)
- High-quality workmanship with 9 mm multiplex birch wood, dark brown laminated
- Aluminum profile frames (30 mm) with rounded edges
- Three-leg, medium-sized steel ball corners
- 2 x recessed case handles with mounting dish and backing ring
- 4 butterfly lock
- 4 wheels with 2 brakes
- 4 x chrome case handles
- Available in different height units (1 U = 44 mm)
- Made in Europe
- Transport aid: With wheels

Technical specifications :

10451684 PSSO DDA-1700 Amplifier

- Power supply: 100-240 V AC, 50/60 Hz
- Power output (RMS):
  * Stereo, parallel at 4 ohms 2 x 850 W
  * Stereo, parallel at 8 ohms 2 x 500 W
- 8 ohms bridged 1 x 1700 W
- Signal-to-Noise ratio: >100 dB
- Total harmonic distortion: <0.15 %
- Damping factor: >500
- Voltage gain: 38.2 dB
- Slew rate: >10 V/µsec
- Input sensitivity: 0.775 V/1.0 V/1.81 V bzw. 39.3 dB/37 dB/32 dB, switchable
- Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
- Input connectors: 4 x XLR
- Output connectors: 4 x Speaker, 4 x XLR feed-through output
- Circuitry: Class D
- Protection: Softstart, short-circuit, overheat, overload, clip limit, RF and VHF signals
- Cooling: 2 temperature-controlled fans, front-to-rear
- Controls: Power switch, input attenuators, mode switch -stereo/parallel/bridged, input sensitivity
- LED indicators: protect, clip, -5 dB, -10 dB, -20 dB (per channel)
- Construction: steel chassis, aluminum front
- Dimensions: 483 x 307 x 89 mm
               rack installation with 2 U
- Weight: 6 kg
- Power consumption: 150 W 1/8 power
- Frequency range: 20 - 20000 Hz
- Height: 8.9 cm
- Depth: 30.7 cm
- Width: 48.3 cm
- Power/channel (4 Ohm): 850 W

10451696 PSSO QCA-6400 4-Channel SMPS Amplifier

- Power supply: 230 V AC, 50 Hz
- Power output (RMS):
  * 2 ohms 4 x 1600 W
  * 4 ohms 4 x 1400 W
  * 8 ohms 4 x 800 W
  * 4 ohms bridged 2 x 3200 W
  * 8 ohms bridged 2 x 2800 W
- Signal-to-Noise ratio: >80 dB
- Total harmonic distortion: <0.05 %
- Damping factor: >800
- Slew rate: >10 V/µsec
- Crosstalk: >65 dB
- Input sensitivity: 0.775 V/1.0 V/1.4 V/38 dB/32 dB/26 dB, switchable
- Voltage gain: 40.3 dB (0.775 V), 38 dB (1.0 V), 35.1 dB (1.4 V)
- Input impedance: 20 kohms (balanced), 10 kohms (unbalanced)
- Input connectors: 4 x XLR
- Output connectors: 4 x Speaker, 4 x XLR feed-through output
- Protection: Overheat, overload, short-circuit, over-current, DC voltage, softstart, VHF signals
- Cooling: 2 temperature-controlled fans, front-to-rear
- Controls: Power switch, input attenuators, mode switch stereo/parallel/bridged, input sensitivity
- LED indicators: Protect, clip, signal (per channel)
- Construction: Steel chassis, aluminum front panel
- Dimensions: 483 x 445 x 89 mm
             rack installation with 2 U
- Power consumption: 820 W 1/8 power
- Weight: 13.45 kg
- Power/channel (8 Ohm): 800 W
- Power/channel (4 Ohm): 1400 W
- Frequency range: 20 - 20000 Hz
- Height: 8.9 cm
- Depth:    44.5 cm
- Width:    48.3 cm

10356362 PSSO DXO-26 PRO Digital Controller

- Power supply: 100-240 V AC, 50/60 Hz
- Analog inputs: 2 x XLR, balanced
- Maximum input level: +22 dBu
- Input impedance: 10 kohms
- Dynamic range: 118 dBA
- Digital input: 1 x AES/EBU (XLR)
- Input impedance: 110 ohms
- Outputs: 6 x XLR, balanced
- Output impedance: 50 ohms (electronically balanced)
- Output gain range: -50 to +12 dB
- Maximum output level: +12 dBu
- Dynamic range: 118 dBA
- Sampling frequency: 65 kHz
- Distortion: 0.005 %
- Filter types: Bessel, Butterworth or Linkwitz-Riley
- Slopes: 6, 12, 18 or 24 dB/octave
- Crossover frequency: 20-20000 Hz
- Delay: 0 to 2000 ms (inputs/outputs)
- Communication: LAN (TCP/IP), USB type B
- Dimensions (W x D x H): 482 x 44 x 223 mm
- Power consumption: 10 W
- Weight: 2.5 kg
- Frequency range: 10 - 40000 Hz
- Height: 4.45 cm
- Depth: 22.3 cm
- Width: 48.3 cm

30100150 OMNITRONIC Front Panel Z-19U-shaped, steel, black 1U

- Weight: 0.29 kg
- Width: 48.3 cm
- Height: 4.45 cm

30109190 ROADINGER Rack Profi KM 6U 55cm with wheels

- Strength: 9 mm
- Outside dimensions (W x D x H): 530 x 710 x 430 mm
- Inside dimensions:
  * Mounting width: 483 mm (19")
  * Mounting height: 275 mm (6 U)
  * Mounting depth: 550 mm
- Corner dimensions: 65 mm
- Weight: 20 kg
- Color: Black laminated
- Maximum load: 50 kg
- Width: 53 cm
- Mounting depth min.: ca. 550 mm
- Depth:    71 cm
- Height: 43 cm
- Material: Birch multiplex 9 mm
