With FLASH X PROEL introduces the third generation of a series of loudspeakers that represented a reference for compact, portable systems for years.
The new FLASH8XD and FLASH12XD continue a long history of high-definition sound, reliability and rugged construction in an affordable package, adding now significant steps forward in technology and a brand new style, and still offering the best-in-class performance, features and design.
FLASH XD are powered by newly designed amplifier modules able to provide up to 1000W or 600W of clean and undistorted power.
The high-efficiency Class D output stages, combined with light-weight and compact Switch Mode Power Supply, give FLASH XD a massive punch and a consistent reserve of power.
The built-in 2-channel mixer with independent LINE and MIC inputs can turn any FLASH XD system into an instant PA system.
The use of carefully selected and customized speakers, including high-definition compression drivers and long-excursion woofers, provide an accurate acoustic response and an amazing sound pressure level with very low distortion.
FLASH XD are controlled by the powerful PROEL CORE LT DSP, featuring high-performance signal processing and high-definition 24bit converters, capable to deliver an outstanding sound definition and a dynamic performance typical of top-end systems.
The CORE DSP signal processing includes a sophisticated Dynamic EQ, able to shape accurately the system’s sound while maintaining a full dynamic range at any level.
In addition the CORE LT DSP offers an extensive dynamic protection to the system, for getting always the maximum undistorted output.
5 EQ PRESETS (MUSIC, LIVE, DJ, SPEECH, MONITOR) can be easily selected to adapt the speakers to any kind of application.
Common features of FLASH X are compact and lightweight PP cabinets with extended internal ribbing and symmetrical wedge angle, constant wide-coverage (90° x 60°) horns for a uniform and coherent sound dispersion, newly-designed ergonomic aluminum handles and built-in flying points for the use in fixed installation.
• 2-way loudspeaker system
• 1” high-definition compression driver with 1.35” VC and titanium diaphragm
• Wide-coverage 90° x 60° constant directivity horn
• 12” long-excursion woofer with 2.5” voice coil
• 1000 W peak Class D power amplifier with SMPS
• High-definition CORE LT DSP with Dynamic EQ
• 5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)
• MIC and LINE inputs with independent level control
• SPL MAX: 127 dB
• Frequency response: 55 Hz - 20 kHz
• Lightweight, compact and ultra-durable PP cabinet
• 3 ergonomic aluminum handles for effortless transportation

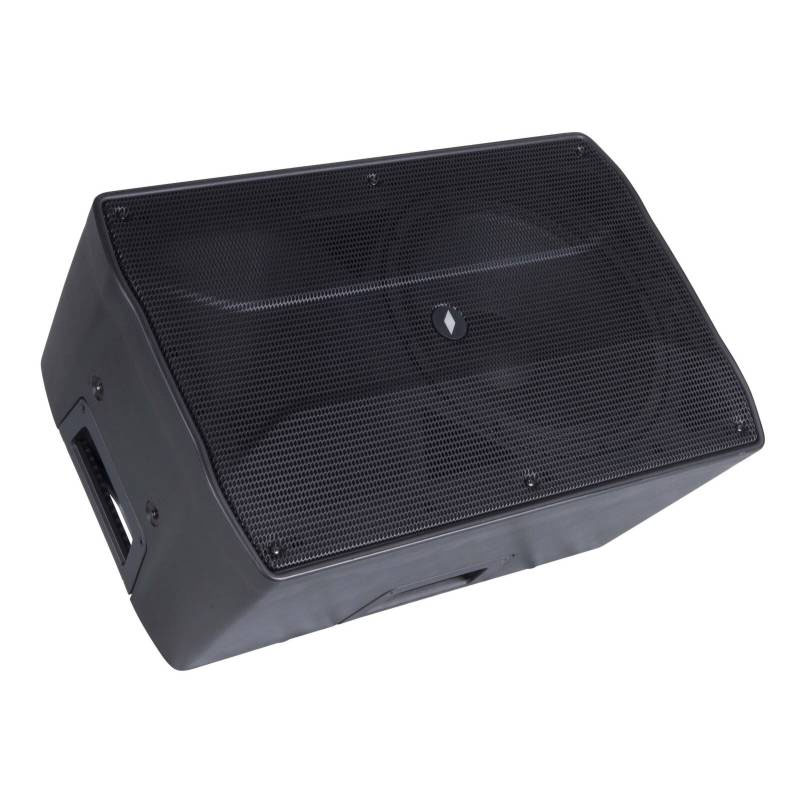

• Slanted symmetrical shape for the use as a stage monitor
• Four M10 flying points
TECHNICAL SPECS
- System type : 2-way vented enclosure
- High Frequency Device : 1’’ compression driver with 1.35" voice coil and titanium diaphragm
- Low Frequency Device : 12 woofer with 2.5 VC
- Angular Coverage : 90° H x 60° V
- Total Peak Power : 1000 W
- HF Amplifier Continuous Power : 100 W Class AB
- LF Amplifier Continuous Power : 400 W Class D
- Power Supply : SMPS
- Processing : CORE LT digital processor
- Frequency Response : 55 Hz - 20 kHz
- Max SPL : 127 dB

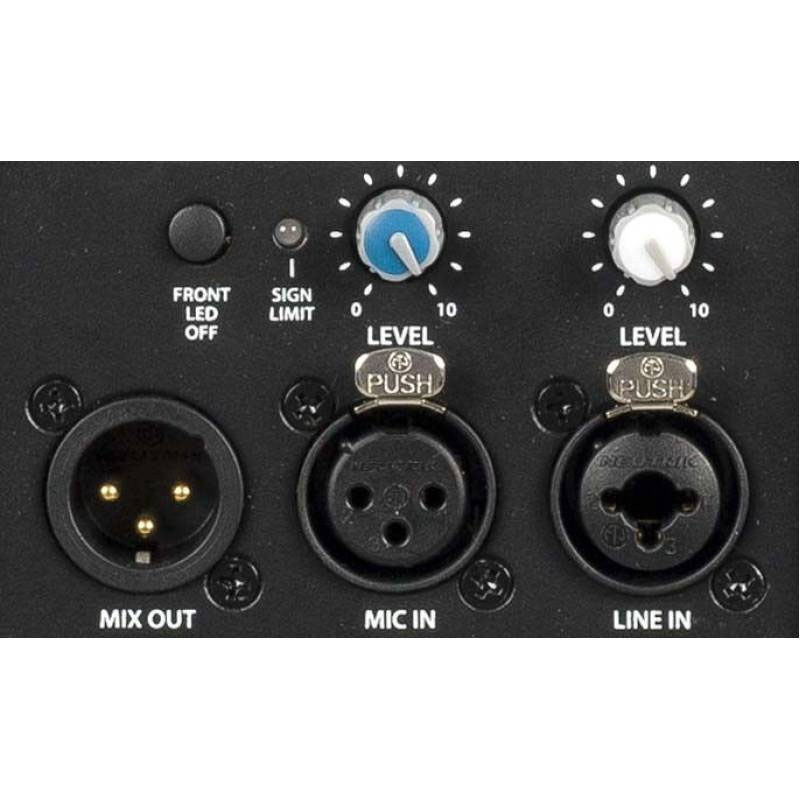

- Connectors : IN: Combo, XLR F MIX OUT: XLR M
- Controls : MIC LEVEL, LINE LEVEL, DSP MODE, GND LIFT
- Power Supply : 230 VAC or 120 VAC 50/60 Hz
- Weight : 19.0 kg (41.8 lb)
- Floor Monitor Angle : 42°
- Flying System : 4 x M10 - top/bottom
- Cabinet Material : Polypropylene
- Handles : 2 x sides, 1 x top aluminum
- Mounting Pole : 1 x bottom
- Dimensions (W x H x D) : 390 x 623 x 350 mm
