Active 2-way loudspeaker systems
The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package.
For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy.
Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service.
The dual-angle pole holder featured in 8”, 10”, 12” and 15” models offers the possibility to obtain a more uniform coverage of the audience.
For the high frequency reproduction of LITE Series we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion.
The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses.
The LITE Series includes 6 active models ranging from 6.5” to dual 15” woofers, plus 1 satellites + subwoofer system.
The extremely lightweight power modules used in the active models feature the latest technologies for amplifi cation, such as Switch Mode Power Supply and CLASS D output stages, which provides a massive amount of power with a reduced weight.
The power modules are hosted in fully-sealed die-cast aluminum boxes that provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling.
Each module includes a sophisticated pre-amp section with up to 24 dB/ oct. phase aligned crossover filters and active EQ fi lters for the system’s fi ne tuning.
The DUAL LIMITER circuit ensures an undistorted sound even at the loudest level and a total loudspeaker protection.
The LT loudspeaker systems can be combined with the SW subwoofers, available in 5 models and capable of providing the perfect low frequency extension for each model of the series.
• 1” compression driver with 1.35” VC on a constant coverage 90° x 60° horn
• 15” woofer with 2.5” VC
• 600 W peak power
• 50 W continuous class AB amplifier for the high frequencies
• 250 W continuous class D amplifier for the low frequencies
• Switch Mode Power Supply (SMPS)
• LINE/MIC input
• SPL MAX 126 dB
• Frequency response 45 Hz - 20 kHz
• Lightweight plywood cabinet
• 2 metal handles
• 4 x M10 flying points
TECHNICAL SPECS
- System type : 2-way vented enclosure
- High Frequency Device : 1” compression driver with 1.35" VC
- Low Frequency Device : 15” woofer with 2.5" VC
- Angular Coverage : 90° H x 60° V
- Total peak power : 600 W
- HF Amplifier Continuous Power : 50 W Class AB
- LF Amplifier Continuous Power : 250 W Class D
- Power Supply : SMPS
- Processing : Analog
- Frequency Response : 45 Hz - 20 kHz
- Max SPL : 126 dB

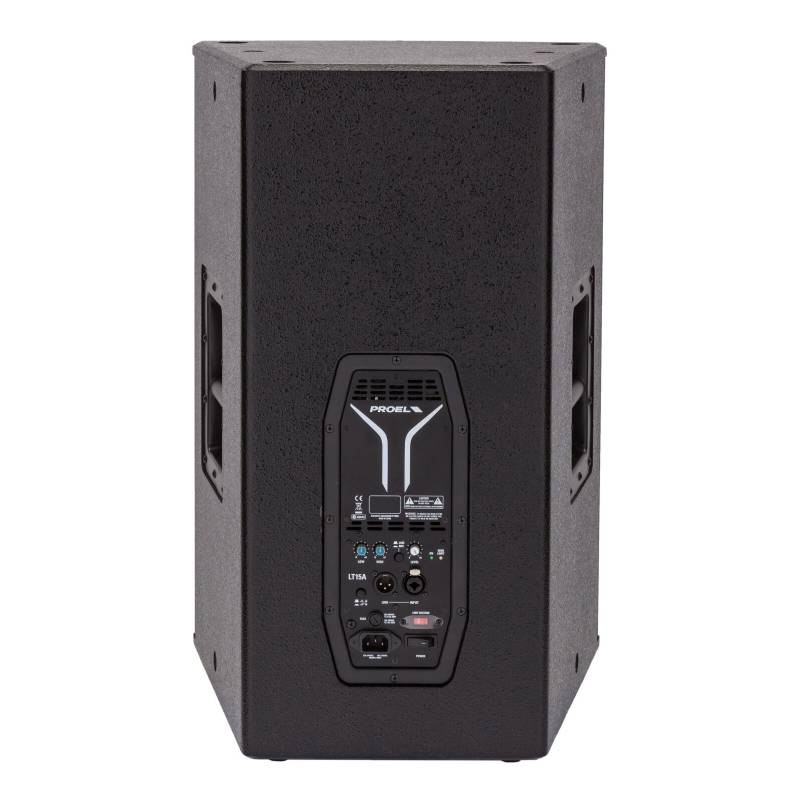

- Connectors : IN: COMBO, LINK: XLR M
- Controls : LEVEL, LINE/MIC selector, LOW EQ, HIGH EQ, GND LIFT FRONT LED selector
- Flying System : 4 x M10 top/bottom
- Construction : Plywood
- Cabinet Colour : Black

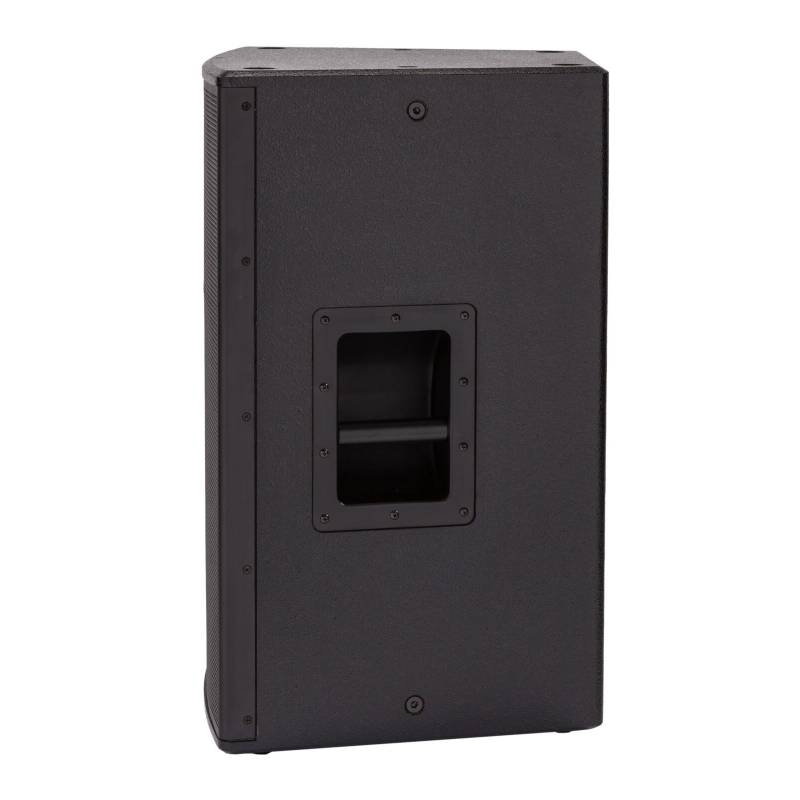

- Handles : 2 x sides
- Mounting Pole : 1 x bottom, dual angle
- Power Supply : "230 or 120 VAC 50/60 Hz with LINE VOLTAGE selector"
- Dimensions (W x H x D) : 448 x 670 x 410 mm
- Weight : 21 kg / 46.3 lbs
